Inflatable seals are flexible sealing devices designed to create an airtight or watertight barrier between two mating surfaces. They are typically made from elastomeric materials and feature a hollow chamber that can be inflated or deflated using compressed air or other fluids. When inflated, the seal expands and makes contact with the surfaces, creating a secure seal. The inflatable nature of these seals allows for easy adjustment, making them ideal for applications where variable sealing pressures, gap compensations, or frequent actuation are required.

Inflatable seals find applications in a wide range of industries. Some common industries that utilize inflatable seals include:

Aerospace: Inflatable seals are used in aerospace applications for cabin pressurization, door sealing, and equipment isolation.

Automotive: They are used in automotive manufacturing for press line operations, leak testing, and material handling.

Pharmaceutical: Inflatable seals are employed in pharmaceutical production for isolating sterile environments, maintaining containment, and preventing cross-contamination.

Food Processing: They are used in food processing equipment for sealing conveyor systems, doors, hatches, and providing sanitary seals.

HVAC: Inflatable seals are utilized in HVAC systems for damper actuation, air handling units, and cleanroom applications.

Marine and Offshore: They find applications in marine environments for sealing watertight doors, hatches, and equipment.

Packaging: Inflatable seals are used in packaging machinery for bag sealing, heat sealing, and blister pack sealing.

Nuclear: They are employed in nuclear power plants for containment isolation and radiation shielding.

General Manufacturing: Inflatable seals are utilized in various manufacturing processes, including robotics, material handling, and equipment isolation.

Inflatable seals offer several advantages over traditional sealing solutions:

Versatility: Inflatable seals can adapt to varying gap sizes and uneven surfaces, providing effective sealing in challenging environments.

Customization: These seals can be custom-engineered to fit specific applications, allowing for precise dimensions, shapes, and materials to meet unique sealing requirements.

Adjustable Sealing Pressure: The inflation mechanism allows for adjusting the sealing pressure, ensuring optimal sealing performance and accommodating changes in operating conditions.

Fast Actuation: Inflatable seals can be rapidly inflated or deflated, facilitating quick and efficient sealing operations in dynamic applications.

Enhanced Sealing Performance: Inflatable seals provide uniform sealing pressure across the entire sealing surface, minimizing leaks and enhancing sealing integrity.

Cost-Effectiveness: Compared to other sealing solutions, inflatable seals can offer cost savings due to their adaptability, durability, and ease of installation.

Reduced Downtime: Inflatable seals can be easily replaced or repaired, minimizing production downtime in case of seal failure or maintenance requirements.

Sealing Integrity: These seals provide reliable sealing, even in challenging environments with vibrations, movements, or irregular mating surfaces.

Inflatable seals can operate at a wide range of pressures depending on the specific application and requirements. The operating pressures can vary from low pressures of a 0.3 bar (4psi)to higher pressures of 50 bar (750psi or even more). The exact pressure range will depend on factors such as the seal design, material selection, application environment, and the desired sealing performance.

Inflatable seals are designed to be inflated to the appropriate pressure to achieve an effective and reliable seal. The inflation pressure is carefully determined based on the gap size, surface irregularities, desired sealing force, and other application-specific considerations. It is crucial to follow the manufacturer’s recommendations and guidelines for the recommended inflation pressure range for optimal sealing performance and longevity of the inflatable seal.

It is important to note that inflatable seals are typically inflated to a pressure that ensures proper sealing and sufficient contact with the mating surfaces. Overinflation or underinflation can lead to compromised sealing performance, premature wear, or potential safety hazards. Therefore, it is essential to carefully consider the operating pressures and adhere to the recommended inflation guidelines provided by the manufacturer or consult with our technical team to ensure the inflatable seals are operated within the appropriate pressure range for your specific application.

Yes, inflatable seals can be customized to fit specific sizes, shapes, and dimensions to meet the unique requirements of various applications. The customization process involves working closely with AST to define the desired specifications, including the seal’s length, width, height, and any specific geometric features required. By providing detailed information about the application and sealing requirements, you can ensure that the inflatable seals are tailored to your specific needs.

Inflatable seals are designed to operate within specific temperature and pressure ranges, and these limitations depend on the chosen material and construction of the seal. Different elastomeric materials have varying capabilities to withstand temperature extremes, ranging from low temperatures -40 degrees to high-temperature applications of 260 degrees. Similarly, the pressure rating of inflatable seals depends on factors such as the material strength, design, and intended application. It is crucial to consult with AST to determine the suitable temperature and pressure ranges for the specific inflatable seals you require.

Inflatable seals can be manufactured using a variety of elastomeric materials, each offering specific properties suited for different applications. Common materials used for inflatable seals include:

Silicone: Known for its excellent temperature resistance, flexibility, and biocompatibility, silicone is suitable for a wide range of applications, including food processing, medical, and pharmaceutical industries.

EPDM (Ethylene Propylene Diene Monomer): EPDM is valued for its good resistance to weathering, ozone, and aging, making it suitable for outdoor and industrial applications where exposure to harsh environmental conditions is a concern.

Nitrile (NBR): Nitrile rubber exhibits excellent oil resistance and is commonly used in applications involving contact with petroleum-based fluids, fuels, and lubricants.

Fluorocarbon (FKM): FKM seals offer exceptional resistance to chemicals, high temperatures, and various fluids, making them ideal for demanding industrial and automotive applications.

Thermoplastic Urethanes (TPU): TPU materials combine the properties of rubber and plastic, offering flexibility, durability, and easy processability, suitable for various sealing applications. The choice of material depends on factors such as the operating environment, chemical compatibility, temperature range, sealing performance requirements, and industry-specific regulations.

Yes, inflatable seals can be used in high-speed applications where rapid inflation and deflation cycles are required. These seals are designed to provide quick and efficient sealing and can withstand the dynamic movements and vibrations associated with high-speed operations. By selecting the appropriate materials and seal design, inflatable seals can effectively maintain sealing integrity even in demanding high-speed environments.

Operating Conditions: Evaluate the temperature range, pressure requirements, chemical exposure, and environmental conditions the seal will be subjected to.

Gap Size and Surface Irregularities: Determine the gap size and the surface irregularities of the mating surfaces to ensure the inflatable seal can accommodate variations and provide a secure seal.

Material Compatibility: Choose a seal material that is compatible with the substances or fluids present in the application, ensuring resistance to chemical corrosion or degradation.

Inflation and Deflation Requirements: Consider the required inflation and deflation times, as well as the pressure control mechanisms, to ensure efficient and effective sealing performance.

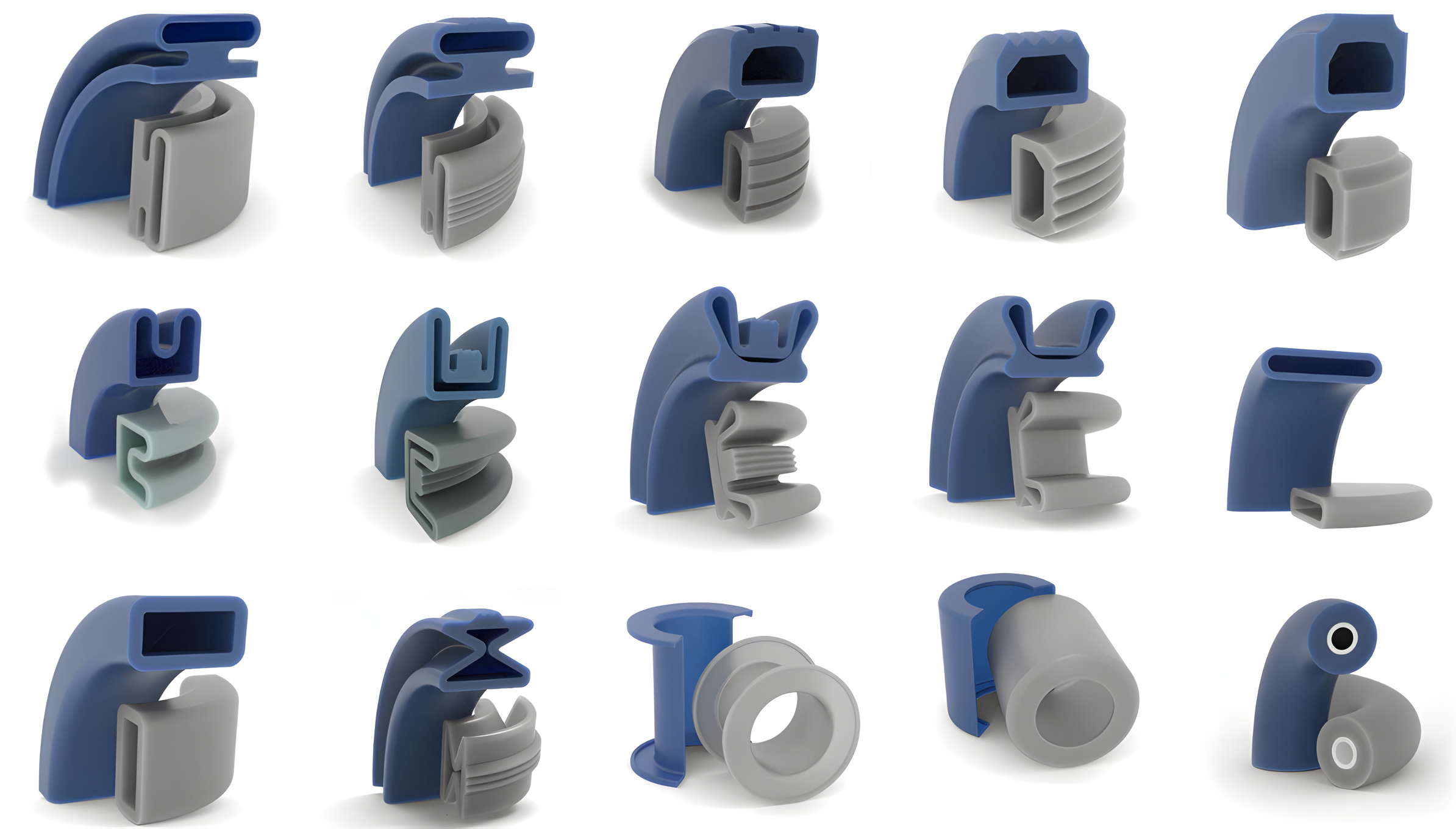

Seal Design and Geometry: Evaluate the seal design and geometry to ensure it matches the specific application requirements, including considerations for the sealing area, mounting options, and any necessary reinforcements.

Industry Standards and Compliance: Check if the inflatable seal meets industry standards, certifications, or regulatory requirements specific to your application.

Yes, inflatable seals can often be retrofitted into existing equipment or systems. Their flexible nature allows for adaptation to various sealing configurations. However, it is important to assess the compatibility of the existing equipment and ensure that the inflatable seal dimensions, inflation mechanism, and sealing surfaces align appropriately. Working closely with our technical team, we can assist in evaluating the feasibility of retrofitting inflatable seals into your specific equipment or system.

Yes, inflatable seals can provide a hermetic or air-tight seal when properly designed and installed. These seals are capable of exerting uniform pressure on mating surfaces, creating a reliable barrier against the passage of air or other gases. The inflatable nature of the seal allows for easy adjustment to ensure an optimal seal, even on irregular or uneven surfaces. By selecting the appropriate material and design, inflatable seals can effectively achieve hermetic sealing in various applications.

The lead times for manufacturing inflatable seals can vary depending on factors such as quantity, size, complexity, and material availability. Typically, lead times range from a few days for standard sizes and designs to a few weeks for custom or complex inflatable seals. At AST, we strive to provide efficient and timely manufacturing processes to meet our customers’ needs. Upon discussing your specific requirements, we can provide you with an estimated lead time for the manufacturing of your inflatable seals.

Yes, inflatable seals can be designed and manufactured to withstand extreme temperature environments. The choice of material is critical in determining the temperature range at which the seal can operate effectively. Silicone inflatable seals, for example, exhibit excellent resistance to high and low temperatures, making them suitable for a wide range of temperature applications. EPDM and fluorocarbon (FKM) seals are also commonly used for their high-temperature resistance. It is important to consult with our technical team to ensure the inflatable seals are selected based on the specific temperature requirements of your application.

Yes, we offer testing and validation services for inflatable seals to ensure their performance and reliability. Our testing capabilities include various parameters such as pressure testing, leak testing, compression testing, and endurance testing. These tests are conducted to evaluate the seal’s ability to withstand specific operating conditions, validate its sealing performance, and ensure it meets industry standards and customer requirements. By utilizing our testing services, you can have confidence in the quality and performance of our inflatable seals.

Yes, inflatable seals can effectively seal irregular or non-uniform surfaces. Their flexible and adaptable nature allows them to conform to various surface contours and irregularities, ensuring a secure and reliable seal. By applying appropriate inflation pressure, the seal can compensate for surface imperfections, gaps, or variations, providing a customized sealing solution. Our technical team can assist in selecting the appropriate inflatable seal design and material to accommodate your specific surface requirements.

Yes, inflatable seals can be designed and manufactured to seal large gaps or openings. By customizing the size, shape, and inflation pressure of the seal, we can accommodate specific gap dimensions and provide an effective sealing solution. Inflatable seals offer the advantage of adaptability, allowing them to seal gaps that may vary in size due to movements, vibrations, or other factors. Whether it’s a large hatch, door, or opening, we can work with you to design and supply inflatable seals that meet your sealing requirements.

Yes, inflatable seals can be utilized for underwater sealing applications. They are designed to provide effective sealing even in challenging environments, including submerged conditions. With the proper selection of materials that offer resistance to water and corrosion, inflatable seals can maintain their integrity and performance underwater. These seals can be used in various applications such as underwater doors, gates, chambers, and marine equipment where reliable and watertight seals are required.

Some typical failure modes of inflatable seals include punctures, tears, degradation of material properties over time, and improper installation leading to inadequate sealing. To prevent these failures, several measures can be taken:

Proper Material Selection: Choose a material that is compatible with the application’s operating conditions, including temperature, chemicals, and exposure to UV radiation.

Optimal Inflation Pressure: Ensure that the seal is inflated to the recommended pressure range to prevent overinflation or underinflation, which can lead to premature failure or compromised sealing performance.

Correct Installation: Follow the manufacturer’s guidelines for proper installation, including positioning, orientation, and alignment of the seal to ensure optimal sealing.

Regular Inspection and Maintenance: Regularly inspect the seals for any signs of wear, damage, or degradation, and replace them as necessary. Keep the seals clean and free from debris that could compromise their performance.

Adequate Training: Provide proper training to personnel involved in the installation, operation, and maintenance of inflatable seals to ensure correct handling and care.

Yes, inflatable seals can be used in high-vibration environments by selecting the appropriate seal design and materials. Vibrations can affect the performance and longevity of seals, but inflatable seals are designed to withstand dynamic movements and vibrations. By choosing materials with good resilience and flexibility, along with proper inflation pressure, the seals can effectively maintain sealing integrity in high-vibration environments. Our technical team can assist in selecting the suitable seal design and material to ensure optimal performance in your specific high-vibration application.

Yes, inflatable seals can be used to create and maintain pressure differentials in various applications. By inflating the seal to a higher pressure than the surrounding environment, a pressure differential can be achieved. This is useful for applications such as containment systems, isolation barriers, or cleanrooms where maintaining specific pressure conditions is critical. The design and material selection of the inflatable seal should be carefully considered to ensure its ability to withstand the desired pressure differentials.

Yes, inflatable seals can be used in sterile or cleanroom environments. These seals can be manufactured using materials that meet the necessary cleanliness and contamination control requirements. They can provide effective sealing to create a barrier against contaminants, ensuring the integrity of sterile or clean environments. It is important to select inflatable seals that meet the specific standards and regulations applicable to your sterile or cleanroom application.

Yes, inflatable seals can be compatible with vacuum applications. They can be designed to provide effective sealing in low-pressure or vacuum environments. It is crucial to select materials that have low outgassing properties to prevent contamination and maintain the integrity of the vacuum system. By working closely with our technical team, we can assist in determining the suitable inflatable seal design and material for your specific vacuum application.

Yes, inflatable seals can be used in applications with abrasive or particulate media. By selecting suitable materials with good resistance to abrasion and particulate ingress, the seals can withstand the challenges posed by abrasive environments. Additionally, proper maintenance practices, such as regular cleaning and inspection, can help prolong the life of the seals in such applications.

For long-term storage of inflatable seals, it is important to follow these considerations:

Clean and dry the seals thoroughly before storage to prevent moisture accumulation and the growth of mold or mildew.

Store the seals in a clean, dry, and well-ventilated area away from direct sunlight, extreme temperatures, and sources of ozone or chemicals that could degrade the material.

Avoid placing heavy objects on top of the stored seals to prevent deformation or damage.

Periodically inspect the seals during storage to ensure they are in good condition and free from any signs of degradation or damage.

Follow AST’s recommendations for storage duration to ensure optimal performance of the seals when they are eventually put into use.
Silicone: 8 Years
NBR: 7 Years
EPDM: 6 Years

In many cases, inflatable seals can be repaired if they sustain minor damages. The repair process typically involves cleaning the damaged area, applying a compatible adhesive or sealant, and allowing it to cure according to the manufacturer’s instructions. However, the feasibility of repair depends on the extent and location of the damage. It is recommended to consult with our technical team for a proper assessment and guidance on whether repair is possible or if replacement is necessary.

Inflatable seals offer several advantages compared to other sealing methods, including:

Versatility: Inflatable seals can be designed and manufactured to fit a wide range of sizes, shapes, and applications, providing versatile sealing solutions.

Adjustable Pressure: The inflation pressure of the seal can be adjusted to achieve the desired sealing force, accommodating variations in gap dimensions and surface irregularities.

Easy Installation: Inflatable seals can be easily installed and removed, allowing for efficient maintenance, replacement, or retrofitting.

Customizability: These seals can be customized to meet specific application requirements, including material selection, dimensions, and design features.

Dynamic Sealing: Inflatable seals are capable of maintaining sealing integrity even in dynamic environments with movements, vibrations, or pressure differentials.

Cost-Effective: Inflatable seals can offer cost savings compared to traditional sealing methods, as they provide effective sealing performance without the need for complex mechanical systems.

Yes, inflatable seals can be suitable for high-pressure applications when designed and manufactured to withstand the required pressure levels. The material selection, seal design, and reinforcement techniques play a crucial role in ensuring the seal’s integrity under high-pressure conditions. It is important to consult with our technical team to determine the suitable inflatable seal solution for your specific high-pressure application.

Inflatable seals can be designed and manufactured to meet the requirements of sealing in explosive or hazardous environments. Special consideration must be given to material selection, static electricity discharge, and compliance with relevant industry regulations and standards. Our technical team can assist in selecting the appropriate inflatable seal design and material that meets the specific requirements of your explosive or hazardous environment.

Yes, inflatable seals can be used in high-temperature applications by selecting suitable materials that offer excellent heat resistance. Silicone, EPDM, and fluorocarbon (FKM) are commonly used materials that can withstand elevated temperatures. It is important to consider the specific temperature range of your application and consult with our technical team to ensure the inflatable seals are suitable for the intended high-temperature environment.

The lifespan of inflatable seals can vary depending on several factors, including the material used, operating conditions, maintenance practices, and application-specific requirements. With proper installation, regular inspection, and maintenance, inflatable seals can provide long-lasting performance. Our technical team can provide guidance on the expected lifespan of inflatable seals based on your specific application parameters.

Typically the inflatable seals will have the same lifespan as the material it is made of:

Silicone: 8 Years
EPDM: 7 Years
NBR: 6 Years

Operating environment, media, pressures and cycles all influence this, it is therefore important to consult AST and test your specific situation.

Inflatable seals can be manufactured using materials that offer resistance to a wide range of chemicals and corrosive substances. Materials such as EPDM, fluorocarbon (FKM), Silicone, NBR or specialized compounds can be selected to ensure compatibility with aggressive chemicals. It is crucial to evaluate the specific chemical environment and consult with our technical team to determine the most suitable material for your sealing needs.

Yes, we are an inflatable seal manufacturer. We specialize in designing, engineering, and manufacturing high-quality inflatable seals for various industries and applications. With our expertise and state-of-the-art facilities, we can provide customized inflatable seals that meet the specific needs of our customers.

Inflatable seals are commonly manufactured through the following production steps:

Compounding: The appropriate rubber compound is prepared by mixing various raw materials, such as polymers, fillers, curing agents, and additives. This compounding process ensures the desired properties, such as flexibility, resilience, and resistance to chemicals or extreme temperatures, are achieved.

Mixing: The compounded rubber material is mixed thoroughly to ensure uniform distribution of the ingredients and to create a homogeneous blend.

Extrusion: The mixed rubber compound is extruded into a specific cross-sectional shape or profile, typically in the form of continuous strips or cords. This extrusion process helps create the desired dimensions and geometry of the inflatable seal.

Splicing: If necessary, the extruded sections are spliced or joined together to form a continuous loop or ring, ensuring the seal’s integrity.

Vulcanization: The extruded and spliced seal is vulcanized or cured in a controlled heat and pressure environment. This process chemically bonds the rubber molecules, enhancing the seal’s strength, durability, and resistance to deformation.

Air Connector Attachment: An air connector, such as a tube or valve, is attached to the inflatable seal. This air connector allows for the inflation and deflation of the seal by connecting it to an air supply system.

It’s important to note that different materials may require variations in the manufacturing process. Our experienced team follows industry best practices and quality control measures to ensure that the inflatable seals we produce meet the highest standards of performance and reliability.

Air, oil, or water pressure can be used to supply the medium for inflating the inflatable seal. The specific method of air supply depends on the application and can be customized to suit the needs of our customers.

For air pressure inflation, an air supply system, such as an air compressor or air pump, can be used to deliver the required air pressure to inflate the seal. The air connector attached to the seal allows for the connection of the air supply system.

Alternatively, for applications where oil or water pressure is preferred, an appropriate hydraulic or pneumatic system can be used to supply the medium for inflation. In such cases, the air connector is connected to the respective oil or water supply system.

It’s important to note that AST can provide additional support and information regarding air flow and valve diagrams, along with the inflatable seals, upon request. Our technical team is available to assist customers in determining the most suitable inflation method and provide the necessary documentation or guidance.

The need for an air compressor depends on the specific application and requirements. In some cases, an air compressor may be necessary to provide the required air pressure for inflating the seal. However, there are also applications where alternative methods or systems can be used to supply air to the inflatable seal. Our technical team can assist in determining the appropriate air supply mechanism based on your specific application needs.

The air connection attached to the inflatable seal can vary depending on the design and application requirements. It is typically a small opening or tube that allows for the connection of an air supply system. The specific type of air connection may include threaded fittings, quick-connect couplings, barbed connections, or custom-designed connectors. The selection of the air connection depends on factors such as ease of use, compatibility with the air supply system, and the desired sealing performance.

Custom sealing solutions refer to specialized sealing products that are tailored to meet specific application requirements. These solutions are designed and manufactured to provide optimal sealing performance, taking into account factors such as dimensions, materials, operating conditions, and industry-specific standards. By customizing the sealing solutions, we can ensure a precise fit and functionality for unique sealing challenges.

A wide range of industries can benefit from custom sealing solutions, including:

Automotive: Custom sealing solutions are essential for various automotive applications, such as engines, transmissions, braking systems, and fluid handling systems.

Aerospace: In the aerospace industry, custom seals are critical for applications such as aircraft engines, hydraulic systems, landing gear, and cabin pressurization.

Energy: Industries such as oil and gas, renewable energy, and power generation require custom sealing solutions for equipment and systems subjected to high temperatures, pressures, and harsh environments.

Medical: Custom sealing solutions play a vital role in medical devices, equipment, and pharmaceutical processing, ensuring safety, hygiene, and precision.

Electronics: Custom seals are utilized in electronic devices, connectors, and enclosures to protect against moisture, dust, and other contaminants.

Food and Beverage: Custom sealing solutions are used in food processing and packaging equipment to maintain hygiene, prevent contamination, and ensure product integrity.

Chemical Processing: Sealing solutions customized for chemical processing equipment are designed to withstand aggressive chemicals, high temperatures, and corrosive environments.

Choosing custom sealing solutions offers several benefits, including:

Optimal Fit: Custom seals are designed to fit precisely within the specific application, ensuring optimal sealing performance and minimizing the risk of leaks or failures.

Enhanced Performance: By tailoring the design and materials to match the application requirements, custom seals can provide superior performance in terms of sealing effectiveness, durability, and reliability.

Application-Specific Compatibility: Custom seals can be designed to be compatible with the specific conditions, such as temperature, pressure, chemical exposure, and environmental factors, ensuring long-lasting performance.

Cost-Effectiveness: Custom sealing solutions can optimize material usage, reduce waste, and enhance overall system efficiency, leading to cost savings in the long run.

Industry Compliance: Custom seals can be manufactured to comply with industry standards and regulations specific to the application, ensuring safety, quality, and compliance.

Custom sealing solutions are developed through a collaborative process involving our experienced engineering team and the customer. The process typically includes the following steps:

Understanding Requirements: We gather detailed information about the application, including operating conditions, dimensions, desired sealing performance, and any specific challenges or requirements.

Design and Engineering: Our team utilizes their expertise to develop a custom sealing solution that meets the specific needs of the application. This involves selecting suitable materials, designing the seal geometry, and ensuring compatibility with the operating environment.

Prototyping and Testing: We create prototypes of the custom seal and conduct thorough testing to validate its performance, including factors such as pressure resistance, temperature stability, chemical compatibility, and durability.

Iterative Refinement: Based on the test results and customer feedback, we refine the design and make necessary adjustments to ensure optimal performance and customer satisfaction.

Manufacturing and Delivery: Once the design is finalized, we proceed with the manufacturing process, utilizing advanced machinery and quality control measures to produce high-quality custom sealing solutions. The finished products are then delivered to the customer.

A wide range of materials can be utilized for custom sealing solutions, including:

Elastomers: Such as Nitrile (NBR), Fluorocarbon (FKM), Silicone, Ethylene Propylene Diene Monomer (EPDM), and Perfluoroelastomer (FFKM). These elastomers offer excellent sealing properties, chemical resistance, temperature resistance, and durability.

Thermoplastics: Including Polytetrafluoroethylene (PTFE), Polyurethane (PU), and various engineered plastics. These materials offer unique characteristics such as low friction, high wear resistance, and compatibility with specific chemicals.

Composite Materials: Combinations of elastomers and other materials, such as fabric-reinforced elastomers or metal-bonded elastomers, can provide enhanced mechanical properties and sealing performance in specialized applications.

Yes, custom sealing solutions can be specifically designed for unique or complex applications. Our engineering team specializes in developing sealing solutions for a wide range of challenging environments and demanding applications. By leveraging our expertise and advanced design capabilities, we can tailor the sealing solutions to meet the specific requirements, including unusual geometries, non-standard dimensions, extreme operating conditions, or specialized performance criteria.

When choosing a sealing solution for your application, several critical factors should be considered. These include:

Operating Conditions: Take into account the temperature range, pressure levels, and environmental factors such as humidity, chemical exposure, or UV radiation.

Compatibility: Ensure the selected sealing solution is compatible with the fluids, gases, or substances it will come into contact with, considering chemical resistance and material compatibility.

Application Requirements: Assess specific requirements such as the level of sealing performance, durability, expected lifespan, and industry standards or certifications.

Design Considerations: Evaluate the application’s design aspects, including available space, mating surfaces, necessary compression or deflection, and ease of installation.

To ensure optimal performance and durability of your chosen sealing solution, several factors are essential:

Material Selection: Consider the properties of the sealing materials, such as temperature resistance, chemical compatibility, mechanical strength, wear resistance, and compliance with industry standards.

Design Compatibility: Ensure the seal design aligns with the application requirements, including the appropriate size, geometry, and sealing mechanism.

Precision Manufacturing: Select a reliable and experienced sealing manufacturer with a reputation for high-quality production processes, adhering to strict quality control measures and utilizing advanced manufacturing technologies.

Testing and Quality Control: Seek sealing solutions that undergo comprehensive testing to validate performance under simulated application conditions, including factors such as pressure resistance, temperature stability, chemical compatibility, and durability.

Compliance with Standards: Verify that the chosen sealing solution meets relevant industry standards and regulatory requirements, ensuring safety, reliability, and performance consistency.

Sealing solutions offer numerous advantages in industrial applications, including:

Prevention of leakage: Sealing solutions provide effective barriers against fluid or gas leakage, helping maintain system integrity and efficiency.

Protection against contaminants: Sealing solutions help prevent the entry of contaminants, such as dirt, dust, moisture, or chemicals, into sensitive equipment or processes.

Enhanced safety: Properly selected and installed sealing solutions can contribute to the safety of personnel and equipment by preventing leaks, pressure imbalances, or potential hazards.

Increased efficiency: Well-designed sealing solutions optimize system performance, minimize energy loss, reduce downtime, and enhance overall productivity.

Customizability: Sealing solutions can be tailored to meet specific application requirements, such as size, shape, material, and performance criteria, providing a customized sealing solution.

Sealing applications can encounter various challenges, such as high temperatures, extreme pressures, aggressive chemicals, abrasive environments, or dynamic movements. To address these challenges, it is crucial to choose sealing solutions with suitable materials, proper design features, and adequate performance specifications. Additionally, working closely with sealing experts, conducting thorough application assessments, and leveraging advanced technologies can help overcome these challenges effectively.

When choosing the appropriate sealing material for your application, several crucial factors should be considered to ensure optimal performance and compatibility. These factors include:

Chemical Compatibility: Evaluate the compatibility of the sealing material with the fluids, gases, or substances it will come into contact with during operation. Consider the potential for chemical reactions, swelling, degradation, or loss of sealing properties.

Temperature Range: Assess the temperature conditions in which the sealing material will operate. Different materials have varying temperature resistance capabilities, and selecting a material that can withstand the specific temperature range of your application is essential to maintain sealing integrity.

Pressure Requirements: Consider the pressure levels the sealing material will be exposed to. Certain materials are better suited for high-pressure applications, while others may be more suitable for low-pressure environments. Ensure the selected material can handle the pressure requirements of your application without compromising performance.

Abrasion and Wear Resistance: Evaluate the potential for abrasive conditions or mechanical wear in your application. Some sealing materials have enhanced resistance to abrasion, ensuring longer-lasting performance in applications with high levels of friction or contact with rough surfaces.

Flexibility and Compression Set: Consider the flexibility and elasticity of the sealing material. It should be able to deform and adapt to the mating surfaces while maintaining a reliable seal. Additionally, check the compression set properties of the material to ensure it can recover its original shape after compression and maintain an effective seal over time.

Durability and Longevity: Assess the expected lifespan and durability requirements of the sealing material. Factors such as material aging, degradation, or resistance to environmental factors like UV radiation or moisture can impact the longevity of the seal. Choose a material that can withstand the anticipated conditions and provide extended service life.

Regulatory Compliance: In certain industries, such as pharmaceutical, food, or aerospace, adherence to specific regulations and certifications is crucial. Ensure the sealing material meets the necessary compliance standards, such as FDA approval, NSF certification, or industry-specific regulations, to maintain regulatory compliance.

Cost Considerations: While considering all the performance factors, it is also important to consider the cost implications of the sealing material. Evaluate the cost-effectiveness of the material based on factors such as material availability, quantity, and the expected lifespan of the seal.

By carefully assessing these factors and consulting with sealing experts, you can make an informed decision in choosing the most appropriate sealing material for your application.

Yes, we specialize in providing custom sealing solutions tailored to our customers’ unique specifications. Our team of experienced engineers and sealing experts works closely with clients to understand their specific requirements, application conditions, and performance criteria.

Through collaborative design and engineering, we develop customized sealing solutions that precisely meet the desired specifications and performance standards. Our expertise extends to various industries, including automotive, aerospace, pharmaceutical, food processing, manufacturing, and many more.

When you partner with us for custom sealing solutions, we follow a comprehensive process that includes:

Requirement Analysis: Our team conducts a thorough analysis of your sealing requirements, considering factors such as application conditions, operating parameters, performance criteria, and any specific industry regulations or certifications.

Design and Engineering: Based on the gathered information, our engineers design a customized sealing solution that meets your specifications. This involves selecting the appropriate sealing materials, determining the optimal sealing profile, and considering any additional features or functionalities required.

Prototyping and Testing: We develop prototypes of the custom sealing solution to validate its performance and ensure it meets the desired specifications. Our testing procedures include assessments of compression, sealing effectiveness, chemical resistance, temperature resistance, and durability.

Manufacturing and Quality Control: Once the design and prototype are approved, we move forward with the manufacturing process. Our state-of-the-art facilities and skilled technicians ensure precise manufacturing, adhering to strict quality control measures to guarantee the highest level of product quality.

Delivery and Support: We provide timely delivery of the custom sealing solutions and offer ongoing support to address any questions or concerns you may have. Our commitment to customer satisfaction extends beyond the delivery, and we strive to build long-term partnerships based on trust and reliability.

By partnering with us for custom sealing solutions, you can benefit from our technical expertise, extensive industry experience, and dedication to delivering high-quality products that meet your unique requirements.

The lead time for custom sealing solutions can vary depending on several factors, including the complexity of the design, material availability, quantity, and specific manufacturing requirements. At AST, we understand the importance of timely delivery and strive to provide competitive lead times while ensuring the highest quality standards.

To determine the specific lead time for your custom sealing solution, thanks to the fact that we are able to produce most of the seals in-house with our manufacturing machinery, we can rapid prototype possible sealing solutions. We recommend reaching out to our sales or customer service team. By providing detailed information about your project requirements, including the sealing specifications, quantities needed, and any specific application considerations, we can provide you with a more accurate estimate of the lead time.

Our experienced team will work closely with you to understand your timeline and project constraints, and we will do our best to meet your delivery expectations. We have established efficient manufacturing processes and a well-coordinated supply chain to minimize lead times and ensure prompt delivery of custom sealing solutions.

Please keep in mind that lead times may also vary based on the complexity of the project, additional testing or validation requirements, or any specific customization needed for your application. Our goal is to provide you with a realistic timeline and deliver the custom sealing solutions that meet your expectations.

Yes, we offer comprehensive design and engineering assistance for custom sealing solutions. Our team of experienced engineers and sealing experts has a deep understanding of sealing principles, materials, and application requirements. We are dedicated to helping our customers achieve optimal sealing performance and efficiency.

When you collaborate with us for custom sealing solutions, our team will work closely with you throughout the design and engineering process. We will:

Gather detailed information about your application, including operating conditions, performance requirements, and any specific challenges or constraints you may have.

Analyze the gathered information to determine the most suitable sealing materials, sealing profiles, and design considerations for your unique application.

Utilize advanced design software and tools to create 2D or 3D models of the custom sealing solution, allowing for visual representation and performance analysis.

Conduct feasibility studies and simulations to evaluate the sealing solution’s performance under different conditions, ensuring its effectiveness and reliability.

Provide expert recommendations and insights based on our extensive experience and knowledge in sealing technology, helping you optimize the design for performance, longevity, and cost-effectiveness.

Work closely with you to refine the design, considering any feedback or specific requirements you may have.

Develop prototypes of the custom sealing solution for testing and validation, ensuring it meets the desired performance criteria and industry standards.

Continuously communicate with you throughout the process, providing updates, addressing any concerns or questions, and ensuring a collaborative and transparent approach.

Our aim is to provide you with a custom sealing solution that not only meets your specifications but also delivers optimal sealing performance, reliability, and durability. By leveraging our design and engineering expertise, you can benefit from a sealing solution that is tailored to your specific application needs.

Requesting a quote for custom sealing solutions is easy and convenient. We understand that each project is unique, and our team is dedicated to providing personalized solutions tailored to your specific needs. To request a quote, simply follow these steps:

Contact our Sales Team: Reach out to our sales team through the provided contact channels, such as phone or email. Our friendly and knowledgeable sales representatives will be ready to assist you.

Provide Project Details: Share detailed information about your project requirements, including the specific sealing application, operating conditions, performance criteria, dimensions, quantities, and any other relevant specifications. The more information you provide, the better we can understand your needs and provide an accurate quote.

Collaboration and Consultation: Our sales team will work closely with you to understand your project in detail. We may ask additional questions to clarify any specific requirements or considerations to ensure that the quote we provide aligns with your expectations.

Quote Preparation: Based on the information provided, our sales team will prepare a comprehensive quote that includes the cost of materials, manufacturing, any customization or engineering requirements, and estimated lead time. We strive to provide competitive pricing while maintaining the highest quality standards.

Review and Feedback: Once you receive the quote, take the time to review it carefully. If you have any questions or require further clarification, our sales team is available to assist you. We value open communication and aim to address any concerns or modifications promptly.

Quote Acceptance: If you are satisfied with the quote and would like to proceed with the custom sealing solutions, notify our sales team of your acceptance. They will guide you through the necessary steps to initiate the project.

Project Execution: Upon acceptance, our engineering and manufacturing teams will commence the design, development, and production of your custom sealing solutions. We will keep you informed about the progress and provide updates throughout the project.

By following these steps, you can easily request a quote for custom sealing solutions tailored to your unique requirements. Our team is committed to delivering high-quality sealing solutions and ensuring customer satisfaction.

Custom sealing solutions can be manufactured using a wide range of materials, each with its own unique properties and advantages. The choice of material depends on factors such as the specific application requirements, operating conditions, and the desired sealing performance. Some commonly used materials for custom sealing solutions include:

Elastomers: Elastomeric materials, such as Nitrile Rubber (NBR), Silicone, Fluorocarbon (FKM), Ethylene Propylene Diene Monomer (EPDM), and Polyurethane (PU), are popular choices for their excellent sealing properties, flexibility, and durability. They exhibit good resistance to temperature variations, chemicals, and environmental factors.

Thermoplastics: Thermoplastic materials, such as Polytetrafluoroethylene (PTFE), Polyethylene (PE), and Polypropylene (PP), are known for their low friction, high chemical resistance, and wide temperature range capabilities. These materials are often used in applications where low wear, excellent chemical compatibility, and tight sealing are required.

Engineered Plastics: Engineered plastics, such as Polyetheretherketone (PEEK), Polyetherimide (PEI), and Polyetherketone (PEK), offer exceptional mechanical strength, dimensional stability, and resistance to wear and chemicals. They are suitable for demanding sealing applications where high performance and durability are critical.

Metal and Metal-Alloy Seals: In certain applications, metal and metal-alloy seals, such as stainless steel, aluminum, or titanium, may be used for their superior strength, high-pressure capabilities, and resistance to extreme temperatures. These seals are often employed in specialized industries like aerospace, automotive, or oil and gas.

Composite Materials: Composite materials, combining two or more materials, can offer specific properties tailored to unique sealing requirements. For example, composite seals may incorporate elastomeric or thermoplastic elements with reinforcement materials like fabric, fiberglass, or aramid fibers to enhance strength, rigidity, or dimensional stability.

When determining the most suitable material for your custom sealing solution, it is essential to consider factors such as chemical compatibility, temperature range, pressure requirements, wear resistance, flexibility, and regulatory compliance. Consulting with sealing experts and considering the specific application needs will help guide the material selection process.

Yes, custom sealing solutions can be specifically designed to withstand extreme temperature or pressure conditions. We understand that some applications require sealing solutions that can perform reliably and effectively in challenging environments.

For extreme temperature conditions, our engineers can select materials that exhibit high-temperature resistance, such as silicone or fluorocarbon (FKM). These materials can withstand a wide range of temperatures, from extremely low to high temperatures, without compromising sealing performance. Additionally, special heat-resistant coatings or treatments may be applied to further enhance the temperature resistance of the sealing solution.

When it comes to extreme pressure conditions, our team can design sealing solutions that can handle high-pressure environments. Materials with excellent compression set resistance and mechanical strength, such as reinforced elastomers or metal seals, can be utilized to ensure reliable sealing under intense pressure. The design of the sealing profile and geometry is also optimized to distribute pressure evenly and maintain sealing integrity.

It is important to note that extreme temperature or pressure conditions may require additional considerations during the design and engineering process. Our team of experts takes into account factors such as thermal expansion, differential pressure effects, material compatibility, and long-term durability to develop custom sealing solutions that meet the specific demands of your application.

By leveraging our expertise and capabilities in custom sealing solutions, we can work together to create sealing solutions that perform exceptionally well under extreme temperature or pressure conditions, providing you with reliable and long-lasting sealing performance.

Yes, custom sealing solutions can be designed to meet specific regulatory compliance requirements. We understand that certain industries, such as pharmaceutical, food processing, or automotive, have stringent regulations and certifications that must be adhered to.

When designing custom sealing solutions for regulatory compliance, our team takes into account the relevant industry standards, regulations, and certifications. We ensure that the selected materials, manufacturing processes, and sealing solutions meet the necessary requirements.

For example, in the food processing industry, sealing solutions may need to comply with FDA (Food and Drug Administration) regulations and NSF (National Sanitation Foundation) certifications to ensure they are safe for contact with food and beverages. Our team can recommend materials with FDA-approved compounds or specialized food-grade elastomers that meet these requirements.

In industries such as pharmaceutical or medical, sealing solutions may need to meet specific certifications such as USP Class VI (United States Pharmacopeia) or ISO 10993 for biocompatibility. We can assist in selecting suitable materials and designs that comply with these certifications.

By working closely with our customers and understanding their specific regulatory needs, we can develop custom sealing solutions that meet the required standards. Our commitment to quality, traceability, and compliance ensures that our sealing solutions are suitable for use in regulated industries.

Yes, we can provide expert assistance in selecting the right sealing solution for your application. We understand that choosing the optimal sealing solution is crucial for achieving reliable and efficient performance.

When you reach out to us for custom sealing solutions, our team of engineers and sealing experts will work closely with you to understand your application requirements. We will consider factors such as operating conditions, temperature ranges, pressure levels, chemical compatibility, and any specific challenges or constraints you may have.

Based on this information, we can recommend the most suitable sealing solution that aligns with your performance criteria and meets your desired outcomes. Our extensive experience in various industries allows us to offer valuable insights and expertise in selecting the right sealing materials, profiles, and designs.

Additionally, we can provide technical documentation, such as material datasheets, test reports, and performance specifications, to support your decision-making process. We believe in transparency and ensuring that our customers have all the necessary information to make informed choices.

Our goal is to assist you in finding the optimal sealing solution that not only meets your functional requirements but also offers durability, longevity, and cost-effectiveness. By leveraging our technical knowledge and expertise, you can have confidence in the performance and reliability of the sealing solutions we provide.

Yes, we can provide assistance with the installation and maintenance of custom sealing solutions. We understand that proper installation and regular maintenance are essential for achieving optimal sealing performance and prolonging the lifespan of the sealing solutions.

When it comes to installation, our team can offer guidance and recommendations on best practices to ensure a proper and secure installation. We can provide installation instructions, guidelines, or even on-site support, depending on the complexity of the sealing solution and the specific requirements of your application.

For maintenance, we can provide insights and recommendations on routine maintenance procedures to keep the sealing solutions in optimal condition. This may include cleaning procedures, inspection guidelines, and recommended intervals for checking and replacing the sealing solutions, if necessary.

In addition, we are available to answer any questions or address any concerns you may have regarding the operation, maintenance, or troubleshooting of the custom sealing solutions. Our dedicated support team is ready to assist you with technical expertise and prompt assistance.

By partnering with us for custom sealing solutions, you not only benefit from high-quality products but also from ongoing support throughout the installation and maintenance process. We aim to provide comprehensive solutions and ensure that your sealing systems perform optimally throughout their service life.

Yes, we can provide customized sealing solutions for retrofitting or replacing existing seals. We understand that over time, seals may wear out, become damaged, or no longer meet the changing needs of your application.

Our team of experts can work with you to assess your existing sealing system and develop tailored solutions for retrofitting or replacement. By evaluating the specific requirements and performance criteria, we can design sealing solutions that seamlessly integrate with your current setup.

During the retrofitting or replacement process, we take into account factors such as dimensional compatibility, material compatibility, and performance improvements. Our goal is to provide you with a sealing solution that not only restores the functionality of your system but also enhances its overall performance.

We leverage our expertise in sealing technology, materials, and manufacturing processes to develop retrofit solutions that offer improved sealing performance, extended service life, and enhanced efficiency. By upgrading your sealing system with our customized solutions, you can benefit from optimized performance, reduced downtime, and improved reliability.

If you are looking to retrofit or replace existing seals, we recommend reaching out to our sales or customer service team. Our knowledgeable staff will be happy to discuss your specific requirements and provide you with customized sealing solutions tailored to your application needs.

To request a consultation or discuss your custom sealing needs with our team, we provide multiple channels of communication to ensure convenience and accessibility:

Contact Form: You can visit our website and fill out the contact form available on our “Contact” or “Get in Touch” page. Provide your name, email address, phone number, and a brief description of your custom sealing requirements. Our team will promptly get in touch with you to schedule a consultation.

Phone: You can directly call our sales or customer service team using the phone number provided on our website. Our friendly representatives will be happy to assist you, answer your questions, and arrange a consultation.

Email: Send an email to our designated email address for inquiries or consultation requests. Provide detailed information about your custom sealing needs, including application details, specifications, and any specific requirements or challenges you may have. Our team will respond to your email promptly and guide you through the process.

When you reach out to us, our experienced sales team will work closely with you to understand your sealing needs, address any concerns, and offer suitable solutions. We prioritize open communication, personalized service, and collaboration to ensure that your custom sealing requirements are met effectively.

Yes, we can provide design and engineering support for custom sealing solutions. Our team of engineers and sealing experts are highly skilled in designing sealing solutions that meet specific performance requirements and application needs.

When you collaborate with us for custom sealing solutions, our design and engineering process includes the following steps:

Requirement Analysis: We work closely with you to understand your application requirements, performance criteria, and any specific challenges or constraints you may have. This analysis forms the foundation for designing the most suitable sealing solution.

Design Development: Our team uses advanced design software and tools to develop the sealing solution. We consider factors such as sealing profile, material selection, dimensions, and any specialized features or customizations needed.

Prototyping and Testing: Once the initial design is complete, we proceed to prototype manufacturing. Prototypes undergo rigorous testing to ensure they meet the desired performance criteria and can withstand the specified operating conditions.

Iterative Refinement: Based on test results and feedback, we refine the design iteratively to achieve optimal sealing performance, durability, and reliability. We consider factors such as material compatibility, pressure resistance, temperature range, and chemical resistance.

Manufacturing and Quality Control: Once the design is finalized, we move into production using state-of-the-art manufacturing processes and strict quality control measures. Our manufacturing facilities adhere to industry standards and quality management systems to ensure consistency and reliability.

Throughout the design and engineering process, our team collaborates with you, providing regular updates, technical support, and incorporating any specific requirements or modifications. We aim to deliver custom sealing solutions that exceed your expectations in terms of performance, quality, and reliability.

Yes, we can provide samples or prototypes of custom sealing solutions for testing purposes. We understand the importance of evaluating the performance, fit, and compatibility of the sealing solution before committing to a full-scale production.

When you request samples or prototypes, our team will work closely with you to determine the specific testing requirements and objectives. We will consider factors such as material selection, design parameters, and any specific performance criteria you wish to evaluate.

Once the design and manufacturing process is complete, we can provide you with samples or prototypes of the custom sealing solution for testing in your application. This allows you to assess the sealing solution’s performance, functionality, and compatibility with your system.

During the testing phase, we encourage open communication and feedback. Our team is available to address any questions or concerns you may have and make necessary adjustments or refinements if needed.

It is important to note that sample availability and testing procedures may vary depending on the complexity and customization of the sealing solution. We are committed to providing you with the necessary support and resources to ensure successful testing and validation of the custom sealing solution.

Yes, we can provide assistance with seal installation and troubleshooting. We understand that proper installation is crucial for achieving optimal sealing performance, and occasionally, issues may arise that require troubleshooting.

When it comes to seal installation, our team can offer guidance, recommendations, and best practices to ensure a successful and secure installation. We can provide installation instructions, guidelines, or even on-site support, depending on the complexity of the sealing solution and the specific requirements of your application.

In the event of any issues or challenges with the sealing performance, our technical support team is available to assist with troubleshooting. We can help identify the root cause of the issue, offer solutions or suggestions for resolution, and provide guidance on how to optimize the sealing performance.

Our goal is to ensure that you achieve the desired sealing results and overcome any obstacles along the way. By leveraging our expertise and experience, we can help you navigate through installation processes and troubleshoot any potential issues, minimizing downtime and maximizing the effectiveness of the sealing solution.

If you require assistance with seal installation or troubleshooting, we recommend reaching out to our sales or customer service team. Our knowledgeable staff will be happy to provide guidance, support, and expertise to help you achieve optimal sealing performance.

Yes, we can provide technical documentation and specifications for custom sealing solutions. We understand the importance of having comprehensive information about the sealing solutions to make informed decisions and ensure compatibility with your application.

When you request custom sealing solutions, we can provide the following technical documentation:

Material Datasheets: We can provide datasheets that detail the properties, characteristics, and performance of the materials used in the custom sealing solutions. This includes information on temperature range, chemical resistance, hardness, and other relevant properties.

Performance Specifications: We can provide performance specifications that outline the expected sealing performance of the custom solutions. This may include details on pressure resistance, temperature range, compression set, leakage rates, and other performance indicators.

Test Reports: We can furnish test reports that demonstrate the performance and reliability of the custom sealing solutions. These reports may include results from tests conducted for material properties, sealing performance, durability, or specific industry certifications.

Installation Guidelines: We can provide guidelines and recommendations for the installation of the custom sealing solutions. These guidelines help ensure proper installation and optimal performance.

By providing comprehensive technical documentation and specifications, we aim to empower you with the necessary information to evaluate and integrate the custom sealing solutions into your application successfully.

If you have specific documentation or specifications requirements, please let our sales team know, and we will work with you to provide the relevant information you need.

Yes, we can provide certifications or compliance documentation for custom sealing solutions. We understand that certain industries or applications may require specific certifications or compliance with regulatory standards.

When you require certifications or compliance documentation, please inform our sales team of your specific needs during the initial consultation. Our team will work with you to ensure that the custom sealing solutions meet the necessary requirements.

Depending on your requirements, we can provide the following certifications or compliance documentation:

FDA Compliance: If your application requires compliance with FDA regulations, we can provide documentation to demonstrate that our sealing solutions meet the necessary standards for use in food and pharmaceutical industries.

Material Certifications: We can provide material certifications that validate the quality and performance of the materials used in the custom sealing solutions. These certifications may include test reports, material traceability information, and compliance with industry specifications.

Industry-Specific Certifications: If your application falls within a specific industry that requires certifications such as ISO, ASTM, or other relevant standards, we can provide documentation to demonstrate compliance with those standards.

Customized Compliance Documentation: If your application has unique compliance requirements, we can work with you to develop customized compliance documentation to meet your specific needs.

Our commitment to quality and customer satisfaction drives us to ensure that our custom sealing solutions meet the necessary certifications and compliance standards. We prioritize transparency and are dedicated to providing you with the necessary documentation for your application requirements.

Certainly! Here is the next question in the Custom Sealing Solutions FAQ:

Custom Sealing Solutions:

Can you accommodate large volume orders for custom sealing solutions?

Yes, we can accommodate large volume orders for custom sealing solutions. At AST, we have the capacity and capability to handle orders of various sizes, from small quantities to large-scale production runs.

When you require a large volume of custom sealing solutions, please inform our sales team during the initial consultation. Our team will work closely with you to understand your production needs, timeline, and any specific requirements.

We have established efficient manufacturing processes and a robust supply chain to ensure timely production and delivery of large volume orders. Our production facilities are equipped with advanced machinery and technology, allowing us to scale up production as needed while maintaining consistent quality.

Throughout the production process, we prioritize quality control and rigorous testing to ensure that each custom sealing solution meets our high standards. We have a dedicated quality assurance team that monitors production processes, performs inspections, and conducts tests to verify the performance and reliability of the sealing solutions.

Our commitment to customer satisfaction extends to large volume orders, and we strive to deliver on-time, high-quality products that meet your specifications. If you have specific requirements or timelines for your large volume order, please discuss them with our sales team, and we will work with you to accommodate your needs.

Hydraulic seals are essential components used in hydraulic systems to prevent the leakage of fluids, such as hydraulic oil or water, and to maintain the proper functioning of the system. These seals are specifically designed to withstand high pressures, varying temperatures, and the dynamic movements of hydraulic cylinders or pistons.

Hydraulic seals come in various shapes, sizes, and materials to suit different hydraulic applications. They are typically made from elastomers, such as Nitrile rubber (NBR), Fluoroelastomer (FKM), or Polyurethane (PU), which offer excellent sealing properties, durability, and resistance to hydraulic fluids and other environmental factors.

The primary function of hydraulic seals is to create a tight barrier between different components of the hydraulic system, ensuring that pressurized fluids are contained and preventing external contaminants from entering the system. Proper sealing is crucial for maintaining system efficiency, preventing leakage, and prolonging the lifespan of hydraulic equipment.

There are various types of hydraulic seals designed to meet specific sealing requirements in hydraulic systems. Some common types of hydraulic seals include:

Piston Seals: Piston seals are used to seal the gap between the piston and cylinder bore in a hydraulic cylinder. They prevent fluid leakage and maintain pressure.

Rod Seals: Rod seals are installed on the outer diameter of the piston rod and prevent fluid leakage from the cylinder while also preventing external contaminants from entering.

Wiper Seals: Wiper seals, also known as dust seals or scraper seals, are used to scrape dirt, dust, and moisture from the rod surface as it retracts into the cylinder. They help protect the rod and prevent contaminants from entering the hydraulic system.

Guide Rings: Guide rings, also called wear rings or guide strips, provide radial support to the piston rod and prevent metal-to-metal contact between the rod and cylinder wall. They help maintain alignment, reduce friction, and extend the life of the hydraulic cylinder.

Backup Rings: Backup rings are used in conjunction with other seals to provide extrusion resistance and enhance the sealing performance of the primary seal. They help prevent seal damage under high-pressure conditions.

Rotary Seals: Rotary seals, also known as shaft seals or lip seals, are used to seal the rotating shafts in hydraulic equipment. They prevent fluid leakage and contaminants from entering the system.

These are just a few examples of hydraulic seals. The specific type of seal required depends on the application, operating conditions, and sealing requirements of the hydraulic system.

A wiper seal, also referred to as a dust seal or scraper seal, is a type of hydraulic seal used in hydraulic cylinders. Its primary function is to scrape away dirt, dust, moisture, and other contaminants from the rod surface as it retracts into the cylinder. By effectively removing these particles, wiper seals help protect the rod and prevent contaminants from entering the hydraulic system, thus ensuring smooth operation and extending the lifespan of the seals and other components.

Wiper seals typically feature a lip or scraping edge that makes contact with the rod surface. This lip is designed to wipe away debris and provide a barrier against external elements. Depending on the application and operating conditions, wiper seals can be made from various materials such as elastomers or polyurethane, which offer excellent resistance to wear, abrasion, and harsh environmental conditions.

It is important to note that wiper seals do not provide a primary sealing function like piston or rod seals. Instead, their main purpose is to protect the primary seals and maintain the cleanliness of the hydraulic system. Regular inspection and replacement of wiper seals are essential to ensure their optimal performance and prevent contamination-related issues in hydraulic systems.

A scraper seal, also known as a dirt seal or wiper ring, is a type of hydraulic seal used in hydraulic cylinders. Similar to wiper seals, scraper seals are designed to remove contaminants from the rod surface as it retracts into the cylinder. They play a crucial role in preventing dirt, dust, moisture, and other debris from entering the hydraulic system, ensuring smooth operation and protecting the seals and other components.

Scraper seals are typically made from materials such as polyurethane or elastomers with excellent wear resistance and sealing properties. They feature a scraping edge or lip that makes contact with the rod surface, effectively scraping away contaminants and keeping the system clean.

While wiper seals and scraper seals serve a similar purpose, they may differ in design and construction depending on the specific application and requirements. Some scraper seals have a more robust design to withstand harsh operating conditions or abrasive environments.

Regular inspection and maintenance of scraper seals are essential to ensure their effective performance. Over time, these seals can experience wear and may require replacement to maintain their optimal function. Proper installation and lubrication are also crucial for maximizing the service life and performance of scraper seals.

A guide ring, also referred to as a wear ring or guide strip, is a component used in hydraulic cylinders to provide radial support and guidance to the piston rod. It is typically positioned between the piston and the cylinder wall. The primary function of a guide ring is to prevent metal-to-metal contact between the piston rod and the cylinder bore, reducing friction and wear, and ensuring smooth and precise movement of the piston.

Guide rings are often made from materials such as polytetrafluoroethylene (PTFE), nylon, or other high-performance polymers. These materials offer low friction, excellent wear resistance, and good dimensional stability, making them ideal for guiding the piston rod in hydraulic applications.

By maintaining proper alignment and reducing friction, guide rings help optimize the performance and longevity of hydraulic cylinders. They contribute to smoother operation, reduced wear on seals and other components, and enhanced overall efficiency.

It is important to select guide rings that are compatible with the specific hydraulic system and operating conditions. Proper installation, lubrication, and regular inspection are essential to ensure the optimal performance and longevity of guide rings.

A backup ring, also known as an anti-extrusion ring or support ring, is a type of hydraulic seal component used in conjunction with other seals to enhance their sealing performance. Backup rings are typically installed on one or both sides of a primary seal, such as an O-ring or a piston seal, to provide additional support and resistance against extrusion under high-pressure conditions.

The primary function of a backup ring is to prevent the primary seal from being forced into the clearance gap between the sealing surfaces, which can result in seal damage or failure. By acting as a mechanical barrier, backup rings enhance the sealing effectiveness and integrity of the primary seal, particularly in applications with high-pressure hydraulic systems.

Backup rings are often made from materials such as polyurethane or thermoplastic elastomers, which offer excellent resistance to extrusion, wear, and hydraulic fluids. They are designed with precise dimensions to fit securely against the sealing surfaces and provide effective support to the primary seal.

The selection of backup rings depends on factors such as system pressure, operating temperature, and the specific sealing application. Proper installation, including ensuring proper alignment and clearance, is crucial for their effective functioning.

A bonded seal, also known as a dowty seal or washer seal, is a type of hydraulic seal used to provide a reliable and secure sealing connection between threaded fittings and ports. It consists of a metal washer or seal ring bonded with a rubber or elastomeric material.

The design of a bonded seal enables it to create a tight and leak-proof seal when compressed between the fitting and the port. The rubber or elastomeric material provides excellent sealing properties, while the metal washer adds stability and prevents over-compression of the seal.

Bonded seals are commonly used in hydraulic systems, especially in applications where high-pressure sealing is required. They offer advantages such as resistance to vibration, temperature variations, and fluid compatibility.

During installation, the bonded seal is placed between the fitting and the port. As the fitting is tightened, the bonded seal compresses, creating a reliable and durable seal. The metal washer prevents excessive compression and ensures optimal sealing performance.

It is important to select the appropriate size and material for the bonded seal based on the specific hydraulic system requirements. Regular inspection and replacement of bonded seals are recommended to maintain their sealing effectiveness.

An oil seal, also known as a shaft seal or rotary shaft seal, is a type of hydraulic seal used to prevent the leakage of oil or lubricants in rotating shaft applications. These seals are typically installed in equipment such as pumps, motors, gearboxes, and other machinery where shafts penetrate the housing or casing.

The primary function of an oil seal is to create a barrier between the rotating shaft and the surrounding environment, preventing oil or lubricant from escaping and contaminants from entering. This helps maintain proper lubrication and protects the components from wear, corrosion, and damage.

Oil seals are designed with a flexible lip that makes contact with the rotating shaft. The lip is usually made from a durable elastomer material, such as Nitrile rubber (NBR), Fluoroelastomer (FKM), or Silicone (VMQ). These materials offer excellent resistance to oil, temperature, and environmental factors.

During installation, proper alignment and lubrication are crucial for the optimal performance of oil seals. Regular inspection and replacement of worn or damaged seals are necessary to ensure effective sealing and prevent potential issues.

A piston seal is a type of hydraulic seal specifically designed to provide sealing and guiding functions in hydraulic cylinders. It is located between the piston and the cylinder bore, ensuring a tight seal and smooth movement of the piston.

The primary function of a piston seal is to prevent fluid leakage between the piston and cylinder bore, maintaining pressure and enabling efficient operation of the hydraulic system. Piston seals are subjected to high pressures, varying temperatures, and dynamic movements, so they need to exhibit excellent sealing properties and durability.

Piston seals are typically made from elastomeric materials, such as Nitrile rubber (NBR) or Polyurethane (PU), Polytetrafluoroethylene(PTFE), which offer good resistance to hydraulic fluids, wear, and extrusion. They are designed with lip profiles or sealing elements that create a sealing barrier between the piston and cylinder bore.

In addition to sealing, piston seals also provide guidance to the piston, ensuring proper alignment and preventing metal-to-metal contact. This reduces friction, minimizes wear, and enhances the overall efficiency and longevity of hydraulic cylinders.

Proper installation, lubrication, and regular inspection of piston seals are essential to maintain their optimal performance. Replacement of worn or damaged seals is necessary to prevent leakage and ensure reliable operation of the hydraulic system.

A rod seal is a type of hydraulic seal used in hydraulic cylinders to prevent fluid leakage along the reciprocating rod. It is typically installed on the outer diameter of the piston rod and forms a dynamic seal between the rod and the cylinder head or gland.

The main function of a rod seal is to prevent hydraulic fluid from escaping the cylinder and to keep contaminants, such as dirt and moisture, from entering the system. It ensures proper functioning and extends the service life of hydraulic cylinders.

Rod seals are subjected to a range of operating conditions, including high pressures, temperature variations, and dynamic movements. Therefore, they need to provide excellent sealing performance, resistance to wear, and compatibility with hydraulic fluids.

Rod seals are commonly made from elastomeric materials such as Nitrile rubber (NBR), Polyurethane (PU), or Fluoroelastomer (FKM). They are designed with lip profiles or sealing elements that create a tight seal with the reciprocating rod.

Proper installation, lubrication, and regular inspection of rod seals are important for their optimal performance. Regular maintenance and replacement of worn or damaged rod seals are necessary to prevent leakage and ensure reliable operation of the hydraulic system.

A rotary seal, also known as a shaft seal or radial shaft seal, is a type of hydraulic seal used to prevent fluid leakage in rotary applications. It is typically installed on rotating shafts, such as those found in pumps, motors, and other rotating equipment.

The primary function of a rotary seal is to provide a barrier between the rotating shaft and the surrounding environment, preventing the escape of fluids and the ingress of contaminants. It helps maintain proper lubrication, protects components from wear and damage, and ensures efficient operation of the equipment.

Rotary seals are designed with a flexible lip that makes contact with the rotating shaft, creating a sealing barrier. The lip is usually made from elastomeric materials such as Nitrile rubber (NBR), Fluoroelastomer (FKM), or Polytetrafluoroethylene (PTFE), depending on the specific application requirements and the type of fluid being sealed.

Proper installation and lubrication are essential for the optimal performance of rotary seals. Regular inspection and replacement of worn or damaged seals are necessary to maintain their sealing effectiveness and prevent potential issues such as leakage or loss of lubrication.

A face seal, also known as a mechanical face seal or a mechanical seal, is a type of hydraulic seal used in applications where high-pressure sealing is required. It consists of two flat sealing surfaces, typically made of metal or hard materials, that are pressed together to create a tight seal.

Face seals are commonly used in hydraulic systems, pumps, compressors, and other industrial machinery. They are designed to withstand high pressures, temperatures, and demanding operating conditions.

The sealing surfaces of a face seal are usually lapped to ensure a precise and tight seal. They are often made from materials such as carbon, ceramic, or stainless steel, which offer excellent wear resistance and sealing properties.

To maintain an effective seal, face seals may require a lubricating film or a sealing fluid to reduce friction and prevent excessive wear. Proper alignment, surface preparation, and installation procedures are essential for the optimal performance of face seals.

Regular inspection and maintenance, including monitoring for leakage or wear, are important to ensure the ongoing sealing effectiveness of face seals. Replacement of worn or damaged seals is necessary to prevent leakage and maintain the integrity of the hydraulic system.

An O-ring is a type of hydraulic seal that is widely used for sealing applications in hydraulic systems. It is a simple and versatile sealing solution that consists of a circular-shaped ring made from elastomeric material, typically Nitrile rubber (NBR) or Fluoroelastomer (FKM).

O-rings are designed to create a reliable and leak-free seal between two mating surfaces, such as a piston and cylinder bore or two hydraulic system components. They are known for their ability to withstand a wide range of pressures, temperatures, and fluid types.

The effectiveness of an O-ring seal relies on its ability to deform and conform to the mating surfaces when subjected to pressure, effectively blocking the passage of fluids. The circular shape of the O-ring ensures uniform sealing pressure around its circumference.

O-rings are available in various sizes and materials, allowing for customization to suit specific hydraulic system requirements. Proper gland design, groove dimensions, and material selection are important considerations for achieving optimal sealing performance with O-rings.

Regular inspection and replacement of O-rings are necessary to prevent seal degradation, maintain sealing effectiveness, and prevent leakage. It is important to ensure proper installation and lubrication to maximize the service life and performance of O-ring seals.

The frequency of hydraulic seal replacement depends on various factors, including the type of seal, operating conditions, and maintenance practices. While some seals may last for years without requiring replacement, others may need more frequent attention.

It is recommended to regularly inspect hydraulic seals for signs of wear, damage, or leakage. Common indications that a seal may need replacement include visible wear, deformation, cracking, loss of elasticity, or fluid leakage. Additionally, if the hydraulic system experiences decreased performance, increased pressure loss, or issues with sealing effectiveness, it may be an indication that seals need to be replaced.

Regular maintenance practices, such as lubrication, cleaning, and proper operating procedures, can help extend the lifespan of hydraulic seals. However, it is important to follow manufacturer recommendations and industry best practices when determining the appropriate replacement interval for specific seal types and applications.

In critical or high-pressure hydraulic systems, it may be advisable to establish a proactive maintenance schedule that includes regular seal inspection and replacement. By monitoring the condition of seals and addressing any signs of wear or damage promptly, the risk of system failure and costly downtime can be minimized.

Hydraulic seals are designed to work under a wide range of pressures, depending on the specific application and hydraulic system requirements. The pressure ratings of hydraulic seals can vary significantly, from low-pressure applications to high-pressure systems.

Common pressure ranges for hydraulic seals can start from a few hundred PSI (pounds per square inch) and go up to several thousand PSI or even higher in specialized applications. The pressure at which a hydraulic seal operates depends on factors such as the hydraulic system design, fluid viscosity, operating temperature, and the specific sealing application.

It is crucial to select hydraulic seals that are rated for the intended pressure range of the system. Overloading seals beyond their pressure limits can result in seal failure, leakage, or even catastrophic system damage. Therefore, it is essential to consult with seal manufacturers or experts to ensure the appropriate seal selection for a given pressure requirement.

Regular inspection and maintenance of hydraulic systems, including monitoring for pressure fluctuations and addressing any pressure-related issues promptly, are important for the longevity and performance of hydraulic seals. Proper system design, including the selection of suitable components and adherence to recommended operating parameters, can help ensure the optimal functioning of hydraulic seals under various pressure conditions.

The number of seals required in a hydraulic cylinder depends on its design and function. Typically, a hydraulic cylinder consists of multiple seals to ensure proper sealing and smooth operation. The specific number and types of seals may vary based on factors such as the cylinder’s application, operating conditions, and performance requirements.

Common seals found in hydraulic cylinders include piston seals, rod seals, wipers, guide rings, and wear rings. Each seal plays a crucial role in the overall sealing performance and functioning of the cylinder.

Piston seals are located between the piston and the cylinder bore, preventing fluid leakage and maintaining pressure. Rod seals are situated between the piston rod and the cylinder head or gland, preventing leakage along the rod. Wipers are used to scrape contaminants from the rod surface, protecting the rod seals and cylinder from damage. Guide rings and wear rings provide guidance and support to the piston, ensuring smooth movement and preventing metal-to-metal contact.

The number of seals in a cylinder may also depend on its size and construction. Larger cylinders may have multiple sets of seals to distribute the sealing load and ensure effective sealing across the entire cylinder length.

It is essential to follow the manufacturer’s specifications and recommendations when it comes to seal placement and selection for hydraulic cylinders. Regular inspection, maintenance, and replacement of worn or damaged seals are necessary to maintain the sealing effectiveness and optimal performance of the cylinder.

Blow-by is a term used to describe the leakage of fluid past hydraulic seals in a hydraulic system. It occurs when the seals fail to create an effective seal, allowing hydraulic fluid to escape or bypass the intended sealing area.

Blow-by can be caused by various factors, including seal wear, damage, incorrect installation, improper seal selection, or excessive pressure. It can result in a loss of hydraulic fluid, reduced system efficiency, and potential contamination of the surrounding environment.

To prevent blow-by and ensure proper sealing, it is important to select high-quality seals that are suitable for the specific hydraulic system requirements. Regular inspection and maintenance of seals are necessary to detect and address any signs of wear or damage promptly.

In some cases, blow-by can be minimized or eliminated by employing additional sealing measures such as backup rings or using proper lubrication. These measures help enhance the sealing effectiveness and prevent fluid leakage.

If blow-by is observed in a hydraulic system, it is recommended to investigate and identify the root cause. This may involve checking the condition of the seals, evaluating system pressures and temperatures, and addressing any potential issues that may contribute to the seal failure.

Seal lubrication refers to the application of a lubricant to the sealing surfaces of hydraulic seals. The purpose of seal lubrication is to reduce friction, enhance sealing performance, and prolong the service life of the seals.

Lubrication plays a crucial role in maintaining the integrity and effectiveness of hydraulic seals, especially in high-pressure or high-speed applications. It helps to minimize wear, heat generation, and the potential for seal failure.

The choice of lubricant for hydraulic seals depends on various factors, including the type of seal material, operating conditions, and compatibility with the hydraulic fluid. Common lubricants used for hydraulic seals include hydraulic oils, silicone greases, and synthetic lubricants.

Proper lubrication of hydraulic seals involves applying the lubricant to the sealing surfaces during installation or maintenance. It is important to follow the manufacturer’s recommendations and guidelines regarding the type and amount of lubricant to be used.

Regular inspection and maintenance of seal lubrication are necessary to ensure ongoing effectiveness. Over time, lubricants may degrade or become contaminated, compromising their lubricating properties. Therefore, it is important to monitor the condition of the lubricant and replace it as needed to maintain optimal sealing performance.

A dry running seal is a type of hydraulic seal that operates without the need for external lubrication. Unlike lubricated seals that require a film of lubricant to reduce friction and enhance sealing, dry running seals rely on the inherent properties of the sealing material to provide effective sealing.

Dry running seals are commonly used in applications where the use of lubricants is restricted or not feasible. They offer advantages such as reduced maintenance, elimination of lubricant contamination, and enhanced environmental compatibility.

The design of a dry running seal involves selecting seal materials that have low friction coefficients and excellent wear resistance. These materials can withstand the sliding or rubbing action between the sealing surfaces without the need for additional lubrication.

It is important to note that the performance and lifespan of dry running seals can vary depending on the specific operating conditions and the quality of the sealing materials used. In some cases, dry running seals may require periodic inspection and maintenance to ensure optimal performance and address any signs of wear or degradation.

When considering the use of dry running seals, it is essential to consult with seal manufacturers or experts to determine their suitability for the intended application and to ensure proper installation and maintenance practices are followed.

Filler materials, also known as fillers or fill materials, are substances added to sealing materials to enhance their properties or improve specific characteristics. These materials are typically blended or mixed with the base sealing material during the manufacturing process.

Filler materials can be in the form of powders, fibers, particles, or other additives that are compatible with the sealing material. They are chosen based on the desired outcome, such as increased strength, improved resistance to temperature or chemicals, enhanced wear resistance, or reduced friction.

Common filler materials used in hydraulic seals include carbon black, glass fibers, aramid fibers, metal powders, and various types of minerals. These fillers help modify the properties of the sealing material to better suit the demands of the hydraulic system or application.

The selection and amount of filler materials used depend on factors such as the specific sealing requirements, operating conditions, and the type of sealing material. It is important to carefully consider the compatibility and effectiveness of the filler materials to ensure they enhance the overall performance and longevity of the hydraulic seal.

Filler materials are typically incorporated into the sealing material during the manufacturing process, ensuring their uniform distribution and integration. The resulting seal provides improved mechanical properties, enhanced resistance to extrusion, reduced wear, and extended service life.

Filler materials are used in hydraulic seals to enhance their properties and improve their performance in demanding hydraulic applications. These materials are added to the base sealing material to achieve specific desired outcomes and address the challenges faced in hydraulic sealing.

There are several reasons why filler materials are used in hydraulic seals:

Reinforcement: Filler materials can strengthen the base sealing material, increasing its resistance to deformation, extrusion, and wear. By reinforcing the seal, it can better withstand high pressures, temperatures, and dynamic loads commonly found in hydraulic systems.

Friction and wear reduction: Certain filler materials can reduce friction between the sealing surfaces, minimizing wear and extending the lifespan of the seal. This is particularly important in high-speed or high-load applications where excessive friction can lead to premature seal failure.

Chemical and temperature resistance: Some filler materials are added to enhance the chemical resistance and thermal stability of the seal. They can provide protection against aggressive hydraulic fluids, extreme temperatures, and chemical exposure, ensuring the seal’s integrity and sealing performance.

Improved sealing performance: Filler materials can help improve the sealing effectiveness of hydraulic seals by filling gaps, reducing micro-leakages, and promoting better contact between the seal and mating surfaces. This results in reduced fluid leakage, increased efficiency, and improved overall system performance.

The selection and combination of filler materials depend on the specific requirements of the hydraulic application. Careful consideration is given to factors such as fluid compatibility, operating conditions, pressure and temperature ranges, and the desired sealing performance.

Metal seals are commonly used in hydraulic applications where high-pressure, high-temperature, or extreme conditions are present. They offer unique advantages over other types of seals, making them suitable for specific sealing requirements.

Here are some scenarios where the use of metal seals may be beneficial:

High-pressure applications: Metal seals are known for their excellent resistance to high pressures. They can withstand substantial hydraulic forces without deformation or leakage, making them ideal for hydraulic systems operating under extreme pressure conditions.

High-temperature environments: Metal seals are capable of withstanding elevated temperatures without compromising their sealing performance. They exhibit good thermal stability and can effectively seal in applications where temperatures exceed the limits of other sealing materials.

Harsh or corrosive environments: Metal seals offer superior resistance to chemicals, corrosive substances, and aggressive fluids. They can provide effective sealing in applications where other sealing materials may be susceptible to degradation or chemical attack.

Dynamic or reciprocating motion: Metal seals excel in applications involving dynamic or reciprocating motion, where they can maintain consistent sealing performance and durability. Their inherent strength and resilience make them suitable for demanding hydraulic systems that undergo frequent movement or vibration.

It is important to consider the specific requirements and operating conditions of the hydraulic application when determining whether to use metal seals. Consulting with seal manufacturers or experts can provide valuable insights and guidance on selecting the appropriate sealing solution.

Rubber seals are widely used in hydraulic applications due to their excellent sealing properties, flexibility, and cost-effectiveness. They offer several advantages that make them suitable for various sealing requirements in hydraulic systems.

Here are some scenarios where the use of rubber seals may be appropriate:

General-purpose sealing: Rubber seals, such as O-rings, are versatile and can provide effective sealing in a wide range of hydraulic applications. They are commonly used in static and dynamic sealing applications, including cylinders, valves, pumps, and hydraulic connections.

Low to moderate pressure applications: Rubber seals are suitable for sealing applications where the operating pressure is relatively low to moderate. They can effectively seal hydraulic systems operating within the pressure ranges that rubber materials can handle.

Flexibility and adaptability: Rubber seals can conform to irregular surfaces and accommodate slight misalignments or variations in the sealing environment. Their flexibility allows them to maintain a reliable seal even under dynamic conditions or when subjected to movement or vibration.

Cost-effectiveness: Rubber seals are generally more cost-effective compared to other sealing materials, making them a popular choice for hydraulic applications that prioritize affordability without compromising sealing performance.

It is important to consider factors such as temperature range, fluid compatibility, and specific performance requirements when selecting rubber seals for hydraulic applications. Proper seal design, material selection, and regular inspection and maintenance are essential to ensure optimal sealing performance and longevity.

Polymer seals, also known as plastic seals, offer unique advantages and are suitable for specific sealing requirements in hydraulic applications. They are made from various polymer materials and exhibit different properties that make them valuable sealing solutions.

Here are some scenarios where the use of polymer seals may be beneficial:

Chemical resistance: Polymer seals are known for their excellent chemical resistance, making them suitable for hydraulic systems that handle aggressive fluids, corrosive substances, or chemicals. They can withstand exposure to a wide range of chemicals without degradation or loss of sealing performance.

Low friction and wear: Polymer seals have low friction coefficients, allowing for smooth movement and reduced wear. They can operate effectively in dynamic applications, where they can provide consistent sealing performance and reduce energy consumption.

Lightweight and cost-effective: Polymer seals are lightweight compared to other sealing materials, making them advantageous in applications where weight reduction is important. They are also typically more cost-effective than metal seals, offering cost savings without compromising sealing performance.

Noise reduction: Polymer seals have the ability to dampen noise and vibrations, making them suitable for applications where noise reduction is desired. This can be particularly beneficial in hydraulic systems where noise levels need to be minimized.

When considering the use of polymer seals, it is important to evaluate factors such as temperature range, pressure limits, fluid compatibility, and specific performance requirements. Working closely with seal manufacturers or experts can help determine the most suitable polymer seal for the intended hydraulic application.

Proper installation of hydraulic seals is crucial to ensure their optimal performance and longevity. Here are the general steps involved in the installation process:

Prepare the sealing area: Ensure that the sealing area is clean, free from debris, and properly lubricated if necessary. Remove any old or damaged seals and clean the surfaces to ensure a good seal-to-surface contact.

Choose the right seal: Select the appropriate hydraulic seal based on the specific application requirements, including size, material, and type of seal. Refer to the manufacturer’s recommendations and guidelines for the correct seal selection.

Position the seal: Carefully position the seal in the groove or housing, ensuring proper alignment and orientation. Follow any specific instructions provided by the manufacturer regarding the installation process.

Apply lubrication (if required): Some hydraulic seals may require the application of a lubricant to aid in the installation process or enhance their sealing performance. Use the recommended lubricant and apply it according to the manufacturer’s instructions.

Install the seal: Gently press or slide the seal into the groove or housing, making sure it sits securely and evenly. Avoid using excessive force or tools that may damage the seal or its housing.

Check for proper fit: Inspect the installed seal to ensure it is seated correctly and there are no visible gaps or misalignments. Verify that the seal is in the correct position and there is no interference with other components.

Test for leakage: After installation, conduct a leakage test to verify the effectiveness of the seal. Apply the appropriate pressure or fluid to the system and check for any signs of leakage or seepage.

It is important to follow the manufacturer’s instructions and recommendations specific to the hydraulic seal being installed. Additionally, consider any industry or application-specific guidelines or regulations that may apply to the installation process.

Selecting the right sealing material is crucial for optimal sealing performance and longevity in hydraulic applications. Here are some factors to consider when choosing a sealing material:

Operating conditions: Assess the specific operating conditions, including temperature range, pressure levels, and the type of fluid or media being sealed. Different sealing materials have varying temperature and pressure limits, as well as compatibility with certain fluids.

Fluid compatibility: Consider the compatibility of the sealing material with the hydraulic fluid or media used in the application. Certain fluids may be more aggressive, corrosive, or have specific chemical properties that require a sealing material with appropriate resistance and compatibility.

Seal performance requirements: Identify the specific performance requirements of the seal, such as the desired level of leakage control, friction reduction, wear resistance, and longevity. Different sealing materials have varying capabilities in these areas, so matching the material to the required performance is crucial.

Application type: Evaluate the type of hydraulic application, such as static or dynamic sealing, reciprocating or rotary motion, or high-speed or high-pressure conditions. Different sealing materials are optimized for specific application types, so understanding the demands of the application is essential.

Cost considerations: Consider the cost-effectiveness of the sealing material, taking into account factors such as the initial cost, maintenance requirements, and expected lifespan of the seal. Balancing performance requirements with cost considerations is important for optimizing the overall value.

Industry standards and regulations: Be aware of any industry-specific standards or regulations that may dictate the choice of sealing materials. Some industries, such as pharmaceutical or food processing, have strict requirements for materials used in their applications.

Consulting with seal manufacturers, experts, or engineers with experience in hydraulic sealing can provide valuable guidance and recommendations for selecting the most suitable sealing material. They can consider the specific application requirements, performance expectations, and industry standards to help make an informed decision.

Hydraulic seals are typically designed for single-use and are not intended to be reused. Once a hydraulic seal has been installed and used in a hydraulic system, it undergoes deformation, compression, and may experience wear or damage. These factors can compromise the sealing effectiveness and performance of the seal.

Reusing hydraulic seals can lead to various issues, including increased leakage, reduced sealing performance, and potential system failures. Seals that have been previously used may have lost their original shape, elasticity, or surface integrity, making them unsuitable for reliable sealing.

To ensure optimal sealing performance and prevent potential problems, it is generally recommended to replace hydraulic seals when maintenance or repair work is being carried out on the hydraulic system. This allows for the installation of new seals that are in optimal condition and can provide reliable sealing.

Additionally, replacing seals during regular maintenance intervals or when signs of wear, damage, or deterioration are observed is essential to maintain the overall integrity and performance of the hydraulic system.

When replacing hydraulic seals, it is crucial to use high-quality seals that are compatible with the specific hydraulic system and application. Following proper installation techniques and adhering to manufacturer’s guidelines will help ensure the effective sealing and long-term functionality of the hydraulic system.

Hydraulic seals are designed to work at a wide range of pressures, depending on the specific application and system requirements. The operating pressure for hydraulic seals can vary greatly, from low-pressure systems to extremely high-pressure systems.

The pressure range for hydraulic seals can span from a few hundred psi (pounds per square inch) to several thousand psi. Common pressure ranges for hydraulic systems can be categorized as follows:

Low-pressure applications: Typically, low-pressure hydraulic systems operate within the range of 100 to 1,000 psi. These applications may include light-duty hydraulic equipment, small machinery, or systems that do not require high-pressure capabilities.

Medium-pressure applications: Medium-pressure hydraulic systems operate within the range of 1,000 to 5,000 psi. This pressure range is commonly found in various industrial machinery, construction equipment, and general-purpose hydraulic systems.

High-pressure applications: High-pressure hydraulic systems operate within the range of 5,000 to 10,000 psi or even higher. These applications often involve heavy machinery, hydraulic presses, hydraulic power units, and other specialized hydraulic equipment that require high-pressure capabilities.

It is important to note that the pressure limits for hydraulic seals are typically determined by the specific seal design, material, and construction. Seal manufacturers provide guidelines and specifications that indicate the maximum pressure at which the seals can reliably operate.

When selecting hydraulic seals, it is essential to choose seals that are suitable for the expected pressure range of the hydraulic system. Using seals that are designed and rated for the specific pressure requirements helps ensure proper sealing performance, prevent leakage, and maintain the integrity of the hydraulic system.
