PLT High-Performance Piston Seal
Seals are particular exposed to pressure, friction and temperature. Our aim is to design and make seals or sealing systems that perform optimal for all these parameters.
Product Description
Seals are particular exposed to pressure, friction and temperature. Our aim is to design and make seals or sealing systems that perform optimal for all these parameters. Following from these parameters is wear, extrusion etc. Our materials are low friction and wear resistant. When applying the right surface parameters in combination with seal type and materials, we are able to supply a very wear and extrusion resistant sealing system for almost all applications.
Below you can find an overview of sealing and bearing materials. Please select the suitable material for your application. When you have any difficulties with selection of a material, contact your AST representative.
Sealing surfaces are very much known for influencing the wear, extrusion and the leakage rate for a sealing system. When applying our sealing systems, please follow our specifications. You will find these specifications through the schedule below.

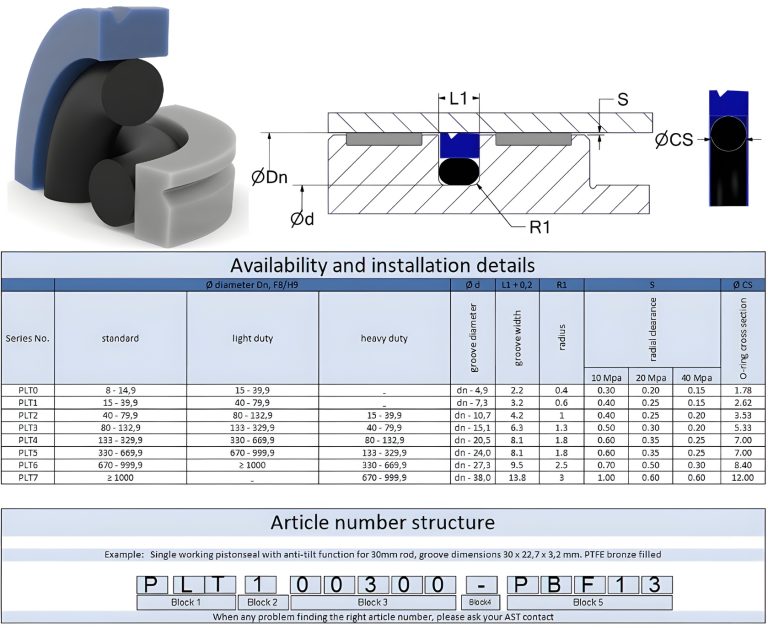

PLT is a single working piston seal with anti-tilt function. The anti-tilt function makes the back pumping effect worse. The anti-tilt function is applied to prevent the seal from tilting in its groove with high speeds in combination with back pressure. It is only used in hydraulic systems. It can also be used in other fluids. It can be used in tandem systems as a primary seal but with higher velocities it needs a pressure relieve channel in between the seals.
Max. Velocity is 5 m/s also depending on the material used and the medium it is working in.
Piston Seal Documentation And Material Datasheets
PTFE's
AST’s PTFE compounds combine the exceptional properties of PTFE with specialized additives, resulting in materials that deliver unparalleled performance in the most demanding applications.
-
PBF13 - Bronze filled
-
PBF16 - High bronze filled
-
PGF21 - Graphite filled
-
PGF22 - Graphite and Carbon filled
-
PTFE23 - Virgin PTFE
-
PCF28 - Carbon filled
-
PTF32 - Mineral filled
-
PTF60 - Glass fiber filled
-
PTE40 - Polyester filled
-
PT114 - Carbon fiber graphite filled
-
PTPM118 - Polyamide compounded
-
PTMF219 - Mineral fiber and molybdenum disulfide filled
-
F540 - Food approved polyester filled
-
PT610 - Glass fiber and MoS2 filled
Polyurethanes
AST’s polyurethane compounds offer unmatched durability and flexibility, ensuring superior performance and longevity in high-pressure and high-wear environments.
VMQ
VMQ for piston seal O-rings provides outstanding flexibility and high-temperature stability, ensuring reliable sealing in extreme environments.
EPDM
EPDM for piston seal O-rings offers excellent resistance to heat, weathering, and ozone, making it ideal for long-lasting performance in diverse industrial applications.
NBR
NBR for piston seal O-rings delivers superior resistance to oils and fuels, offering exceptional durability and performance in demanding hydraulic systems.
FKM
FKM for piston seal O-rings excels in harsh chemical environments, providing unmatched resistance to heat, chemicals, and aggressive fluids for the most challenging applications.
Custom Piston Seals
Advanced Sealing Technology specializes in designing and manufacturing custom piston seals. We work closely with clients to create tailored sealing solutions that meet specific performance requirements, operating conditions, and dimensional constraints. Our expert team utilizes advanced materials and precision engineering to produce high-quality, custom piston seals that optimize efficiency, minimize leakage, and extend equipment life in hydraulic and pneumatic systems across various industries.
