RDT High-Pressure Rod Seal
Seals are particular exposed to pressure, friction and temperature. Our aim is to design and make seals or sealing systems that perform optimal for all these parameters.
Product Description
Below you can find an overview of sealing and bearing materials. Please select the suitable material for your application. When you have any difficulties with selection of a material, contact your AST representative.

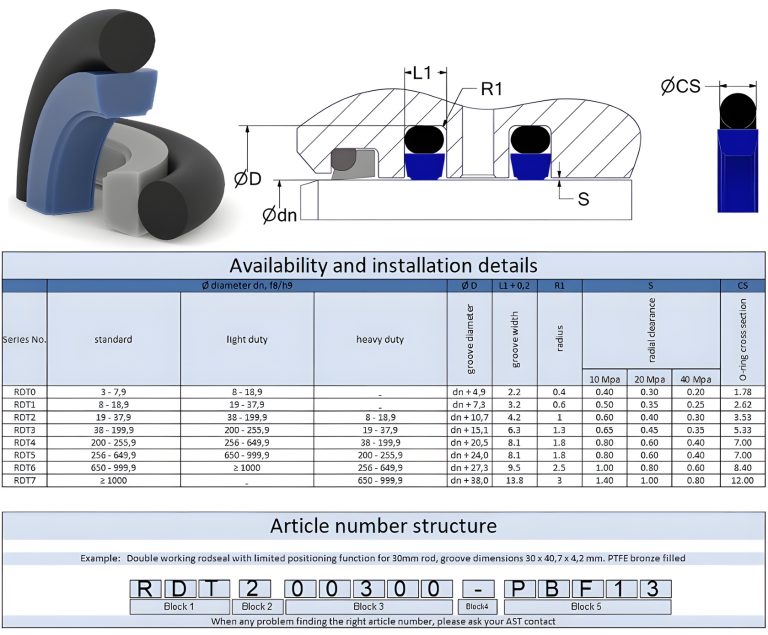

Sealing surfaces are very much known for influencing the wear, extrusion and the leakage rate for a sealing system. When applying our sealing systems, please follow our specifications. You will find these specifications through the schedule below.
RDT is a double working rod seal for high pressure applications in combination with large gaps. It has a limited positioning function. It is only used in hydraulic systems. It can also be used in other fluids. It is used on its own. It is not suitable for high velocity in combination with high frequency.
Max. Velocity is 15 m/s also depending on the material used and the medium it is working in. It can be used on metallic rod materials or on ceramic rod coatings when applying the right compounds. For High density rod materials such as Inconel and Duplex, please ask you AST representative for our possibilities.
Rod Seal Documentation And Material Sheets
PTFE's
AST’s PTFE compounds combine the exceptional properties of PTFE with specialized additives, resulting in materials that deliver unparalleled performance in the most demanding applications.
-
PBF13 - Bronze filled
-
PBF16 - High bronze filled
-
PGF21 - Graphite filled
-
PGF22 - Graphite and Carbon filled
-
PTFE23 - Virgin PTFE
-
PCF28 - Carbon filled
-
PTF32 - Mineral filled
-
PTE40 - Polyester filled
-
PTF60 - Glass fiber filled
-
PT114 - Carbon fiber graphite filled
-
PTPM118 - Polyamide compounded
-
PTMF219 - Mineral fiber and molybdenum disulfide filled
-
F540 - Food approved polyester filled
-
PT610 - Glass fiber and MoS2 filled
Polyurethanes
AST’s polyurethane compounds offer unmatched durability and flexibility, ensuring superior performance and longevity in high-pressure and high-wear environments.
VMQ
VMQ for rod seal O-rings provides outstanding flexibility and high-temperature stability, ensuring reliable sealing in extreme environments.
EPDM
EPDM for rod seal O-rings offers excellent resistance to heat, weathering, and ozone, making it ideal for long-lasting performance in diverse industrial applications.
NBR
NBR for rod seal O-rings delivers superior resistance to oils and fuels, offering exceptional durability and performance in demanding hydraulic systems.
FKM
FKM for rod seal O-rings excels in harsh chemical environments, providing unmatched resistance to heat, chemicals, and aggressive fluids for the most challenging applications.
Custom Rod Seals
Advanced Sealing Technology specializes in designing and manufacturing custom rod seals. Our expert team works closely with clients to create tailored solutions that meet specific application requirements. Using advanced materials and precision engineering, we produce high-performance rod seals that excel in challenging environments, offering superior sealing, reduced friction, and extended service life. Our custom rod seals are designed to optimize your hydraulic and pneumatic systems’ efficiency and reliability.
