RLV High-Performance Rod Seal
Seals are particular exposed to pressure, friction and temperature. Our aim is to design and make seals or sealing systems that perform optimal for all these parameters.
Product Description

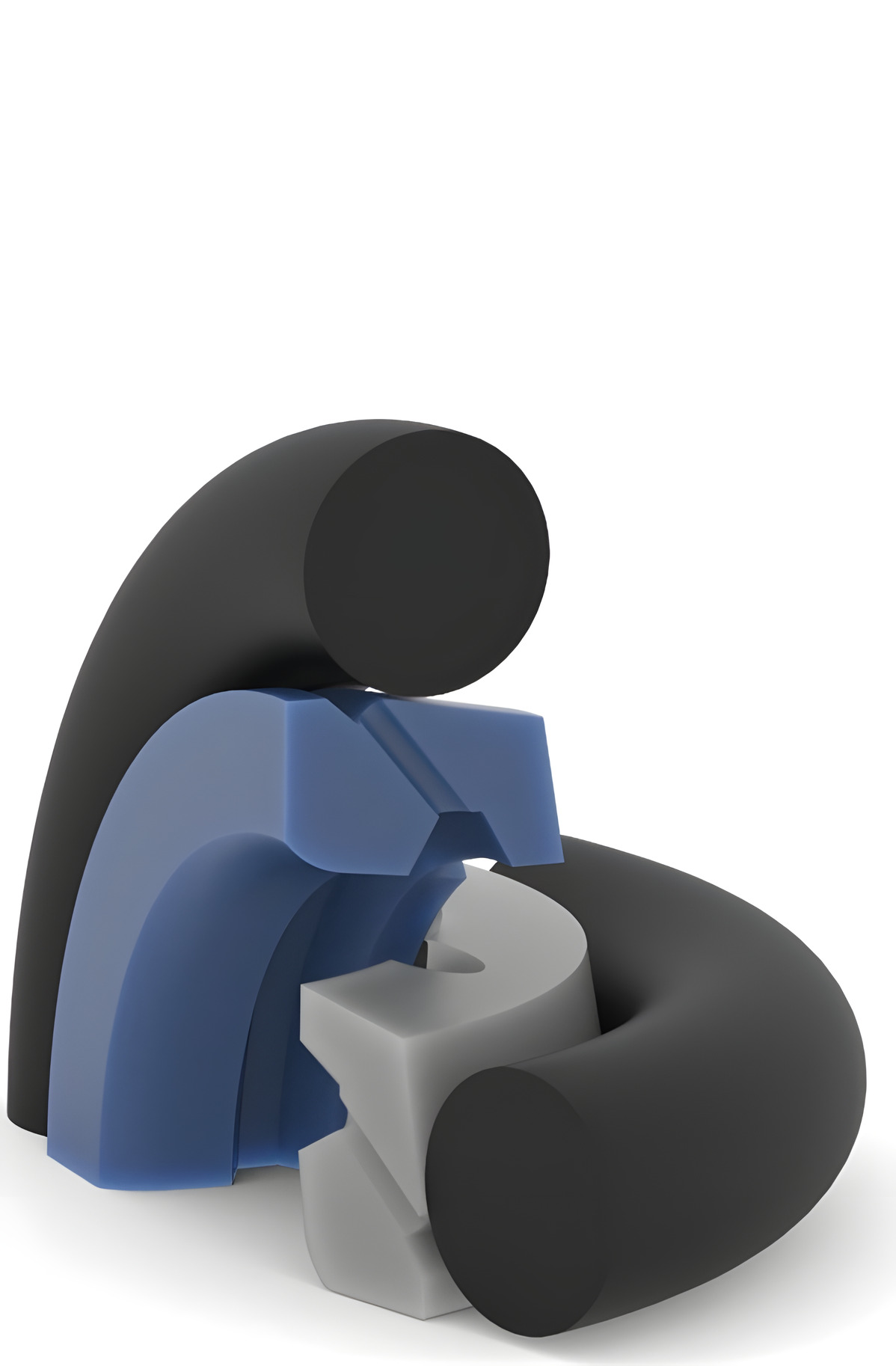

The RLV is a high-performance, single-acting rod seal with an O-ring energizer and integrated pressure relief channel. Key features include:
- Prevents pressure build-up between seals

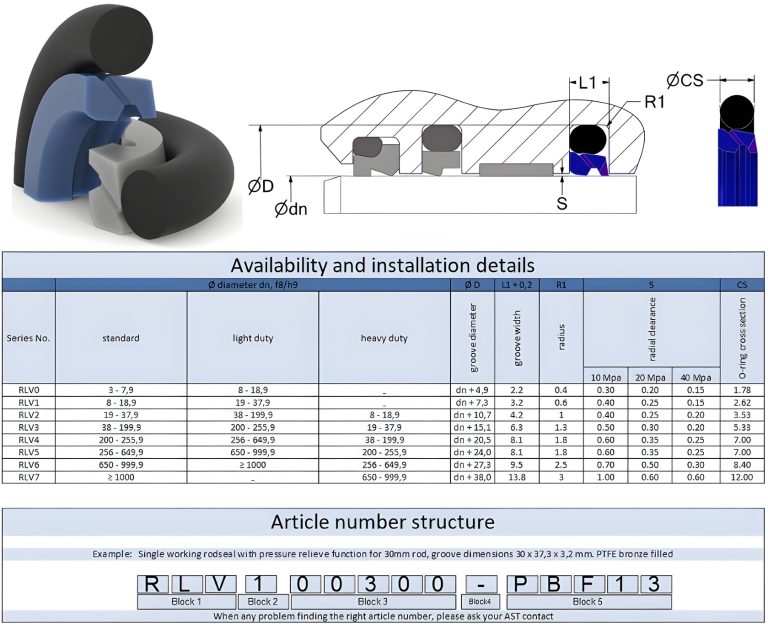

- Suitable for ISO 7425 grooves
- High sealing efficiency
- Low friction and minimal breakout force
- Excellent wear resistance
Ideal for use with a secondary rod seal and double-acting wiper. The RLV offers superior sealing in various hydraulic applications, balancing reliability and efficiency.
Rod Seal Documentation And Material Sheets
PTFE's
AST’s PTFE compounds combine the exceptional properties of PTFE with specialized additives, resulting in materials that deliver unparalleled performance in the most demanding applications.
-
PBF13 - Bronze filled
-
PBF16 - High bronze filled
-
PGF21 - Graphite filled
-
PGF22 - Graphite and Carbon filled
-
PTFE23 - Virgin PTFE
-
PCF28 - Carbon filled
-
PTF32 - Mineral filled
-
PTE40 - Polyester filled
-
PTF60 - Glass fiber filled
-
PT114 - Carbon fiber graphite filled
-
PTPM118 - Polyamide compounded
-
PTMF219 - Mineral fiber and molybdenum disulfide filled
-
F540 - Food approved polyester filled
-
PT610 - Glass fiber and MoS2 filled
Polyurethanes
AST’s polyurethane compounds offer unmatched durability and flexibility, ensuring superior performance and longevity in high-pressure and high-wear environments.
VMQ
VMQ for rod seal O-rings provides outstanding flexibility and high-temperature stability, ensuring reliable sealing in extreme environments.
EPDM
EPDM for rod seal O-rings offers excellent resistance to heat, weathering, and ozone, making it ideal for long-lasting performance in diverse industrial applications.
NBR
NBR for rod seal O-rings delivers superior resistance to oils and fuels, offering exceptional durability and performance in demanding hydraulic systems.
FKM
FKM for rod seal O-rings excels in harsh chemical environments, providing unmatched resistance to heat, chemicals, and aggressive fluids for the most challenging applications.
Custom Rod Seals
Advanced Sealing Technology specializes in designing and manufacturing custom rod seals. Our expert team works closely with clients to create tailored solutions that meet specific application requirements. Using advanced materials and precision engineering, we produce high-performance rod seals that excel in challenging environments, offering superior sealing, reduced friction, and extended service life. Our custom rod seals are designed to optimize your hydraulic and pneumatic systems’ efficiency and reliability.
