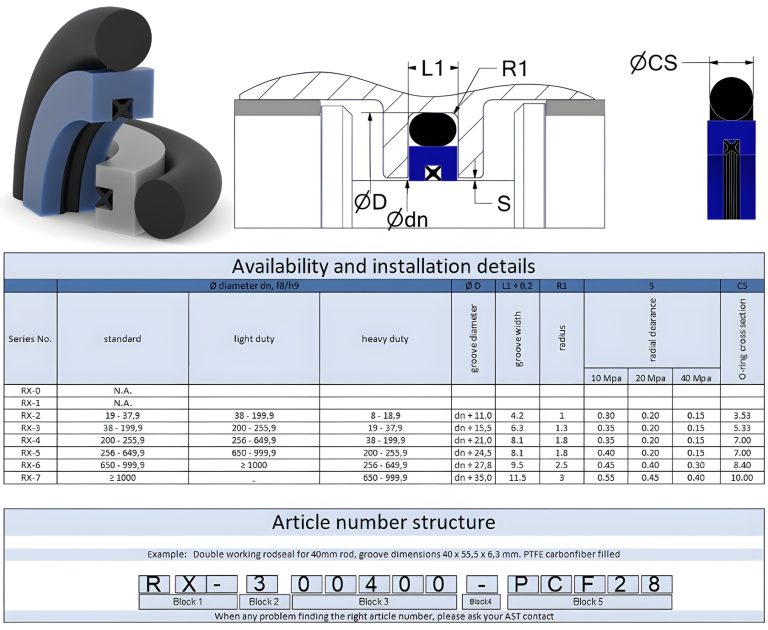

RX High-Performance Double Working Rod Seal
Seals are particular exposed to pressure, friction and temperature. Our aim is to design and make seals or sealing systems that perform optimal for all these parameters.
Product Description
Below you can find an overview of sealing and bearing materials. Please select the suitable material for your application. When you have any difficulties with selection of a material, contact your AST representative.
Sealing surfaces are very much known for influencing the wear, extrusion and the leakage rate for a sealing system. When applying our sealing systems, please follow our specifications. You will find these specifications through the schedule below.
RX is a double working rod seal with positioning function. It is normally used in hydraulic systems. The special shape makes it impossible for oil to pass in a static position. The result of that is that the system will statically stay in position for a long time. It can also be used in other fluids when the wright compound is chosen. However it contains elements that might be changed with other compounds before you are able to apply it with other fluids. Please ask your AST representative for information.
Max. Velocity is 3 m/s also depending on the material used and the medium it is working in.
Rod Seal Documentation And Material Sheets
PTFE's
AST’s PTFE compounds combine the exceptional properties of PTFE with specialized additives, resulting in materials that deliver unparalleled performance in the most demanding applications.
-
PBF13 - Bronze filled
-
PBF16 - High bronze filled
-
PGF21 - Graphite filled
-
PGF22 - Graphite and Carbon filled
-
PTFE23 - Virgin PTFE
-
PCF28 - Carbon filled
-
PTF32 - Mineral filled
-
PTE40 - Polyester filled
-
PTF60 - Glass fiber filled
-
PT114 - Carbon fiber graphite filled
-
PTPM118 - Polyamide compounded
-
PTMF219 - Mineral fiber and molybdenum disulfide filled
-
F540 - Food approved polyester filled
-
PT610 - Glass fiber and MoS2 filled
Polyurethanes
AST’s polyurethane compounds offer unmatched durability and flexibility, ensuring superior performance and longevity in high-pressure and high-wear environments.
VMQ
VMQ for rod seal O-rings provides outstanding flexibility and high-temperature stability, ensuring reliable sealing in extreme environments.
EPDM
EPDM for rod seal O-rings offers excellent resistance to heat, weathering, and ozone, making it ideal for long-lasting performance in diverse industrial applications.
NBR
NBR for rod seal O-rings delivers superior resistance to oils and fuels, offering exceptional durability and performance in demanding hydraulic systems.
FKM
FKM for rod seal O-rings excels in harsh chemical environments, providing unmatched resistance to heat, chemicals, and aggressive fluids for the most challenging applications.
Custom Rod Seals
Advanced Sealing Technology specializes in designing and manufacturing custom rod seals. Our expert team works closely with clients to create tailored solutions that meet specific application requirements. Using advanced materials and precision engineering, we produce high-performance rod seals that excel in challenging environments, offering superior sealing, reduced friction, and extended service life. Our custom rod seals are designed to optimize your hydraulic and pneumatic systems’ efficiency and reliability.
