1020 Castellated Square Profile

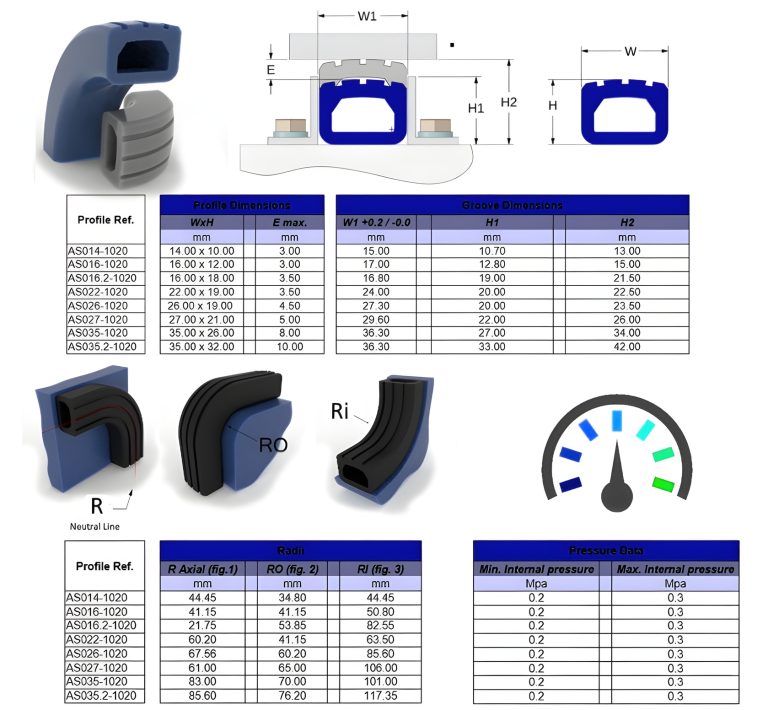

Profile Description 1020 Castellated Square Profile

The 1020 Castellated Square Profile series, also known as the high-pressure profile, is specifically designed to perform optimally under high-pressure conditions. This profile is versatile and can function well in all expansion direction configurations, making it a suitable choice for a variety of applications.

One of the defining characteristics of the 1020 series is its ability to operate effectively under high pressures. Despite this, it requires a low gap and offers relatively little expansion. This makes it an ideal choice for situations where the sealing surfaces are not far apart and have relatively low tolerances.

The possible expansion of the 1020 series increases with its size and width. This means that the profile can be tailored to specific applications, providing a customized sealing solution. The profile is usually either glued into the groove at the bottom of the seal or made slightly larger so it can be press-fit into the groove. This offers flexibility in terms of installation and ensures a secure fit.

The 1020 high-pressure profile is often used in situations where a robust and reliable seal is required under high-pressure conditions. Its ability to work well with a low gap and limited expansion makes it a practical choice for applications where the sealing surfaces are close together.

In summary, the 1020 high-pressure profile is a versatile and reliable choice for high-pressure applications. Its ability to function well in all expansion direction configurations, along with its customizable expansion capabilities, makes it a robust and adaptable solution for a range of sealing needs.

Please select your material or ask for advice.
