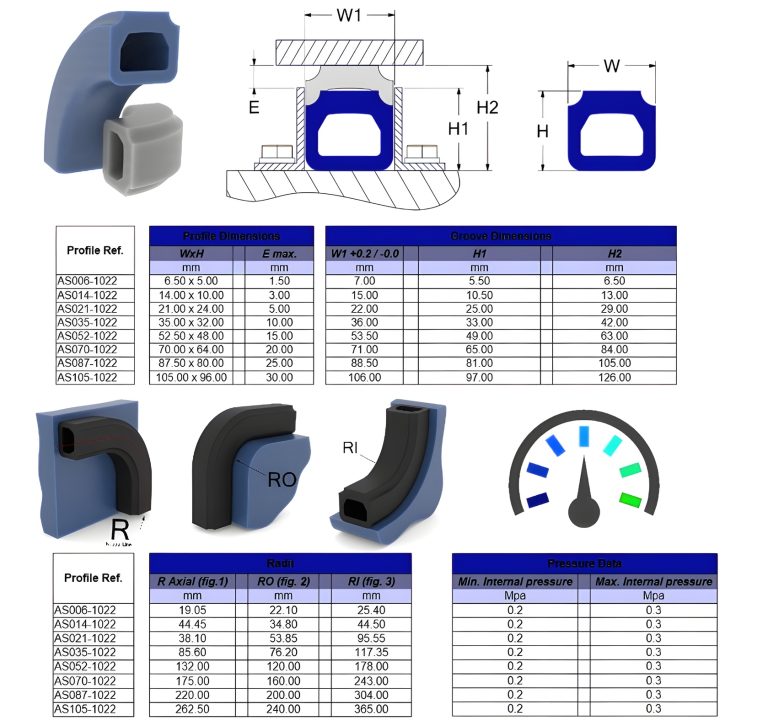

1022 Castellated Flat profile

Profile Description

The 1022 series, another member of the high-pressure profile family, is designed to provide reliable performance under high-pressure conditions. This profile is adaptable and functions effectively in all expansion direction configurations, making it a versatile choice for a wide array of applications.

A defining characteristic of the 1022 series is its ability to operate under high pressures while requiring a relatively low gap. This makes it particularly suitable for applications where the sealing surfaces are closely spaced and have low tolerances. Despite its high-pressure capabilities, the 1022 profile offers limited expansion, an important factor to consider when selecting the right seal for specific applications.

The potential for expansion with the 1022 series increases with its size and width. This allows for customization to meet specific sealing requirements. The profile is typically either glued into the groove at the bottom of the seal or designed slightly larger for a press-fit into the groove. This flexibility in installation methods ensures a secure and effective seal.

The 1022 high-pressure profile is commonly used in situations requiring a durable and reliable seal under high-pressure conditions. Its ability to operate effectively with a low gap and limited expansion makes it an ideal choice for applications where the sealing surfaces are not far apart.

In summary, the 1022 high-pressure profile is a robust and adaptable choice for high-pressure applications. Its versatility in expansion direction configurations, coupled with its customizable expansion capabilities, makes it a reliable solution for a wide range of sealing needs.

Please select your material or ask for advice.
